The Contribution of Extreme Ultraviolet from Clusters of Galaxies to the Cosmic Ionizing Background

  • Authors: Scott W. Randall and Craig L. Sarazin

Randall & Sarazin 2001 The Astrophysical Journal 548 60.

  • Provider: AAS Journals

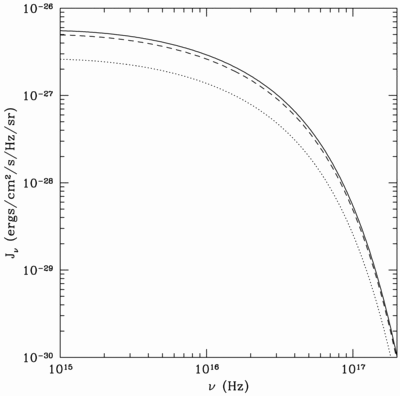

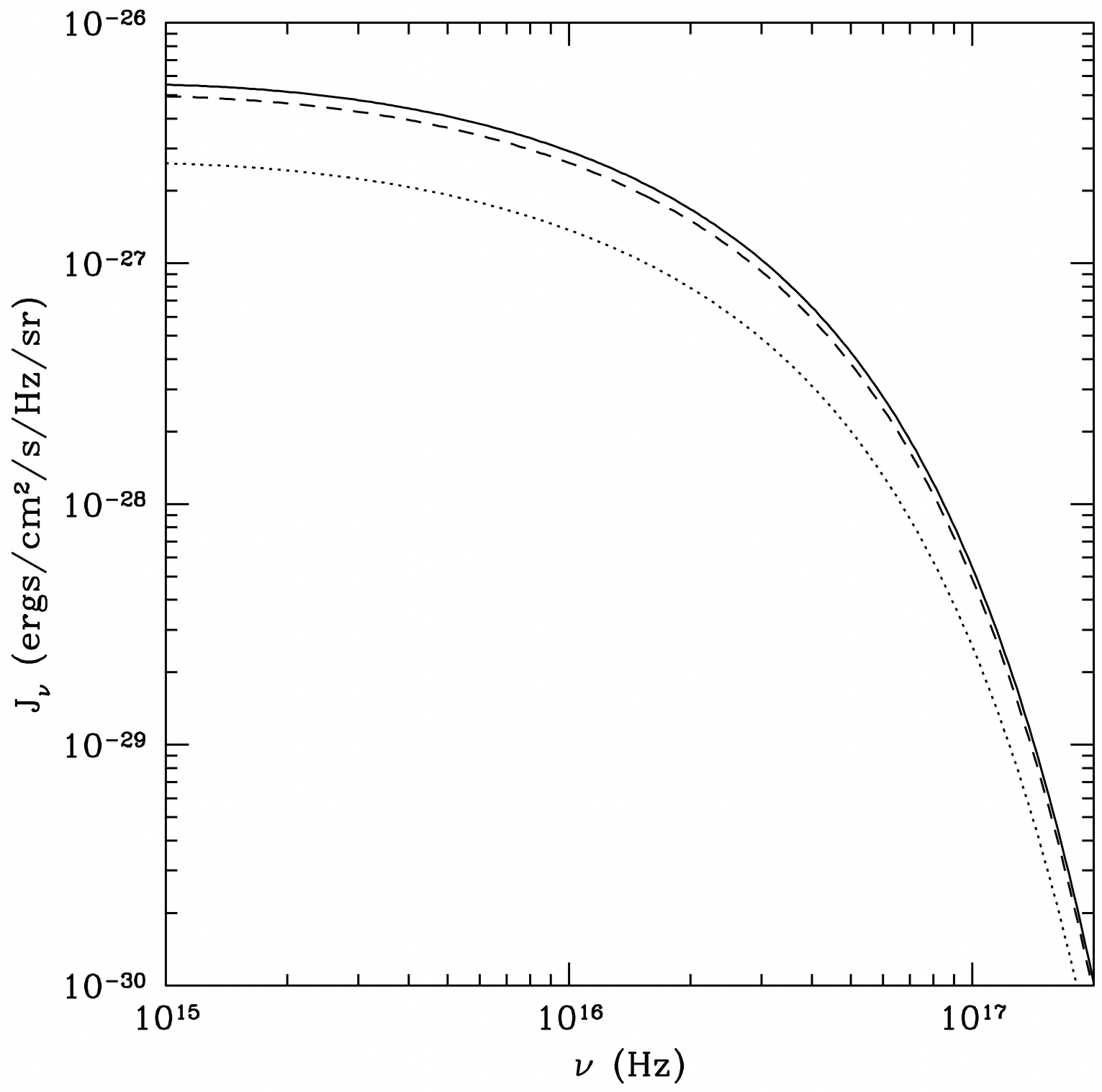

Caption: Fig. 4.

Mean specific intensity of the EUV background expected from clusters at the current epoch for three distinct cosmologies. The solid curve represents an open universe (﹩\Omega _{0}=0.3,\Omega _{\Lambda }=0﹩), the dashed curve a flat universe (﹩\Omega _{0}=0.3,\Omega _{\Lambda }=0.7﹩), and the dotted curve a closed universe (﹩\Omega _{0}=1.0,\Omega _{\Lambda }=0﹩). Absorption effects are ignored.
