Constraints on Cold H2 Clouds from Gravitational Microlensing Searches

  • Authors: R. R. Rafikov and B. T. Draine

Rafikov & Draine 2001 The Astrophysical Journal 547 207.

  • Provider: AAS Journals

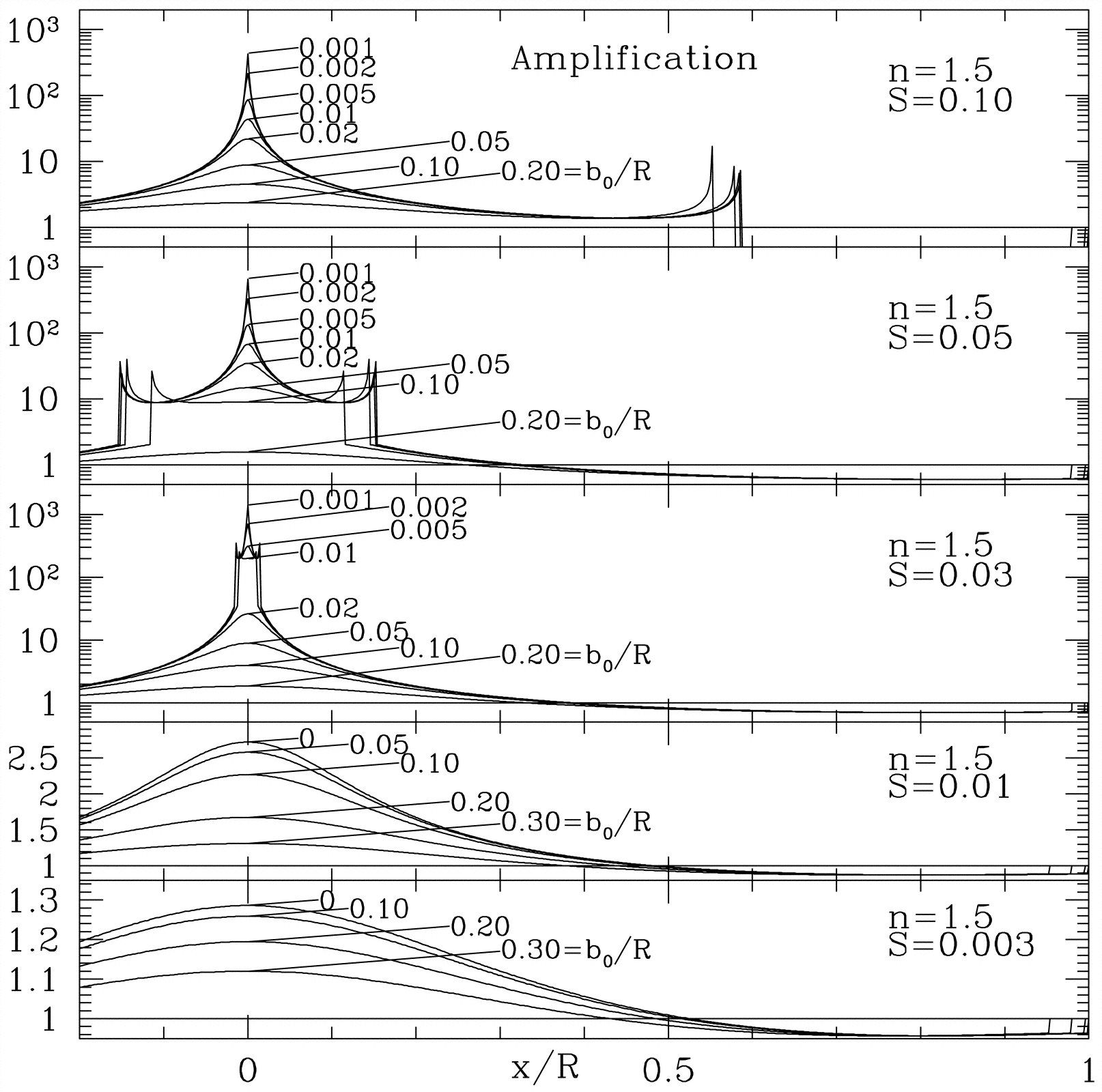

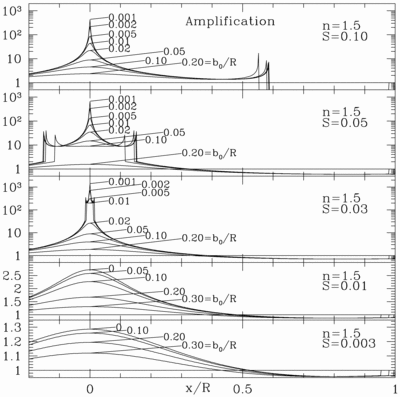

Caption: Fig. 2.

Plots showing light curves for ﹩n=1.5﹩ with different ratios ﹩S/ S_{\mathrm{cr}\,}﹩: 4, 2, 1.2, 0.4, 0.12 (top to bottom). In the three top panels one can easily see caustics produced by multiple images. For light curves corresponding to other values of n and ﹩S/ S_{\mathrm{cr}\,}﹩, see Draine (1998).
