Erratum: “Atomic Iron and Nickel in the Coma of C/1996 B2 (Hyakutake): Production Rates, Emission Mechanisms, and Possible Parents”(2021, PSJ, 2, 228)
S. J. Bromley et al 2026 The Planetary Science Journal 7 .

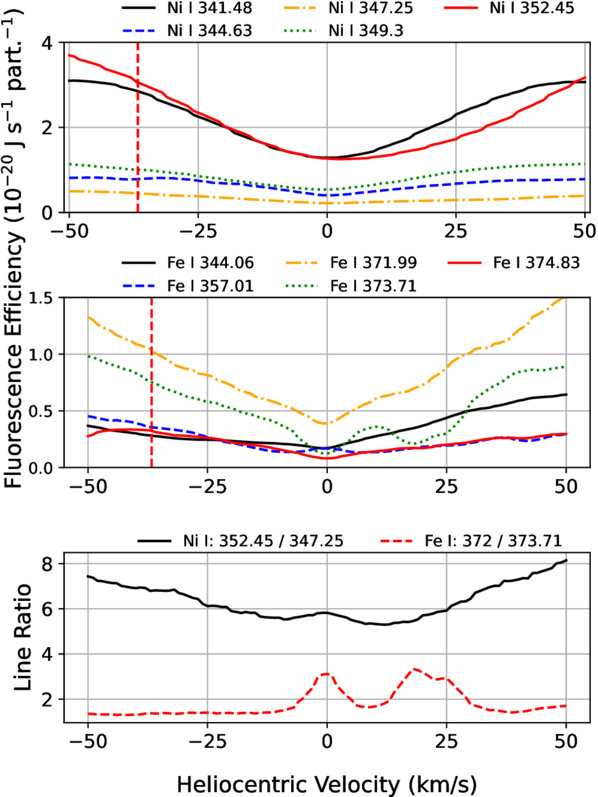

Caption: Figure 10.
Sensitivity of our modeled fluorescence efficiencies for some representative Ni I lines (top) and Fe I lines (middle) to heliocentric velocity, and (bottom) example velocity-sensitive line ratios for Ni I (black) and Fe I (red). Efficiencies were calculated for a heliocentric distance of 1 au. The heliocentric velocity of Hyakutake (−36.7 km s−1) is shown as a vertical dashed line.
