Erratum: “Atomic Iron and Nickel in the Coma of C/1996 B2 (Hyakutake): Production Rates, Emission Mechanisms, and Possible Parents”(2021, PSJ, 2, 228)

  • Authors: S. J. Bromley, B. Neff, S. D. Loch, J. P. Marler, J. Országh, K. Venkataramani, D. Bodewits

S. J. Bromley et al 2026 The Planetary Science Journal 7 .

  • Provider: AAS Journals

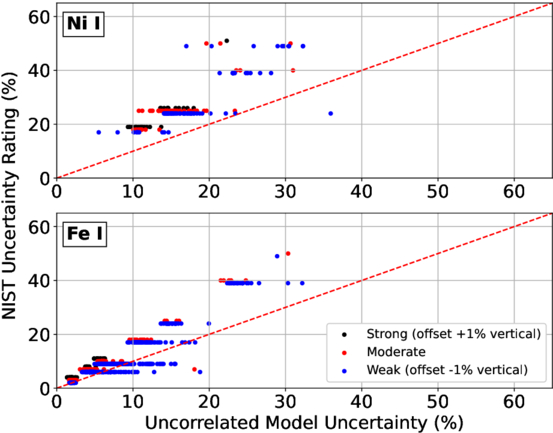

Caption: Figure 3.

(Top) Model uncertainties for the fluorescence spectrum of Ni I, calculated as the standard deviation of fluorescence efficiencies as a percentage of the value with the default transition rate following 105 iterations within the limits of  ± ​​​​​​the Atomic Spectra Database (ASD) accuracy (see Table 1 of the published article) versus the ASD accuracy rating for 163 selected nickel transitions with model uncertainties <100%. Axis limits were restricted to enhance the visibility of the majority (>99%) of lines within this criterion. Strong and weak lines are offset ±1% vertically with respect to moderate lines for visibility; for definitions of line classifications, see text in the published article. (Bottom) Fe I model uncertainties versus ASD accuracy ratings for 645 transitions with uncertainties lower than 100%.
