Real-time Closed-loop Correction for Dynamic Wavefront Aberrations Using Deep Learning–based Focal-plane Wavefront Sensing

  • Authors: Lingxiao Zhang, Nanfei Yan, Libo Zhong, Qianhan Zhou, Youming Guo, Lanqiang Zhang, Changhui Rao

Lingxiao Zhang et al 2026 The Astrophysical Journal Supplement Series 287 .

  • Provider: AAS Journals

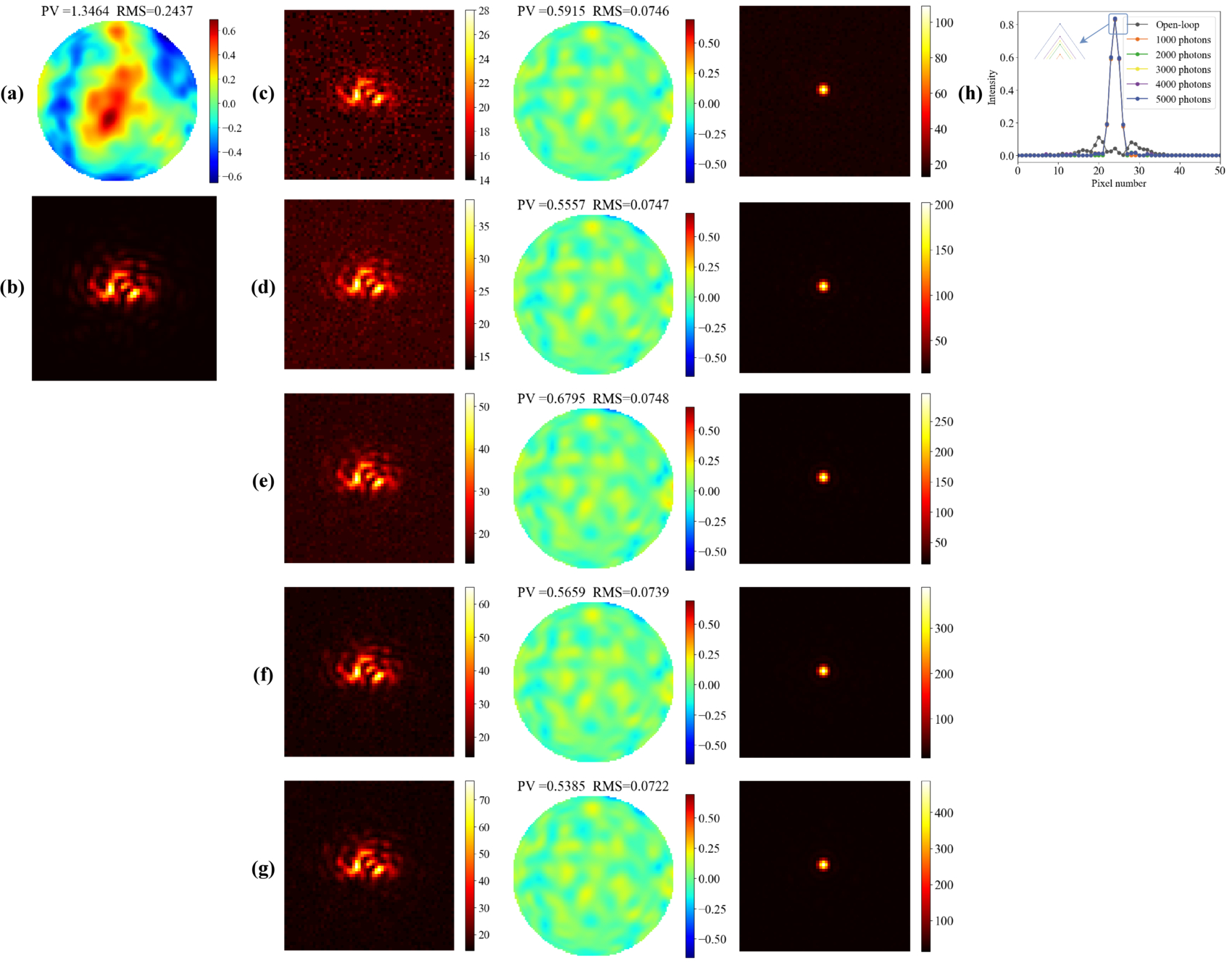

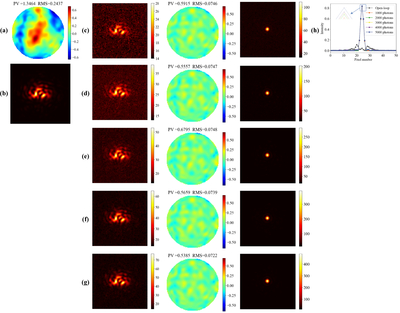

Caption: Figure 14.

Results under different photon flux levels at D/r0 = 6. (a) Initial uncorrected wavefront. (b) The corresponding ideal focal-plane image of (a), with an SR of 0.11. (c)–(g) From left to right: simulated focal-plane images with photon noise and readout noise, corrected wavefronts, and corrected focal-plane images. From top to bottom: correction results with photon numbers of 1000, 2000, 3000, 4000, and 5000, respectively. The corresponding SR values of the corrected images are 0.83, 0.83, 0.83, 0.83, and 0.84, respectively. (h) Horizontal lineout of focal-plane images.
