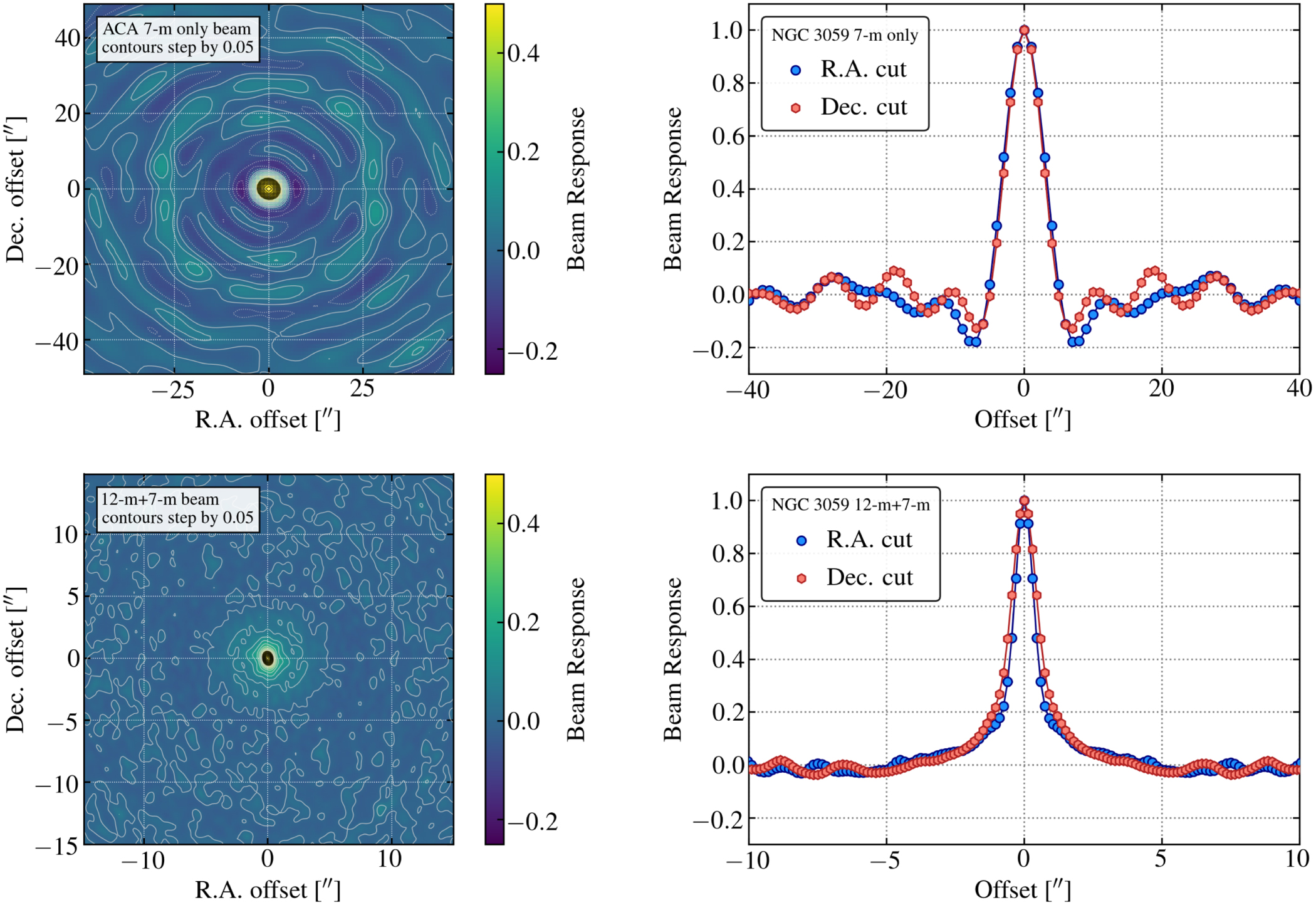

Caption: Figure 26.
PHANGS–ALMA synthesized beam examples. Synthesized beams for one channel in our NGC 3059 CO(2−1) cube produced by our CASA imaging for the (top row) ACA 7 m only and (bottom row) 12 m+7 m combined arrays. The left column shows images of the synthesized beam response for each case, with contours spaced by 0.05. The right column shows response cuts along R.A. and decl. through the synthesized beam.
