Slow Cosmic-Ray Diffusion in Supersonic and Super-Alfvénic Turbulence

  • Authors: Yue Hu

Yue Hu 2026 The Astrophysical Journal Letters 1008 .

  • Provider: AAS Journals

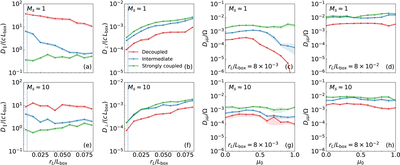

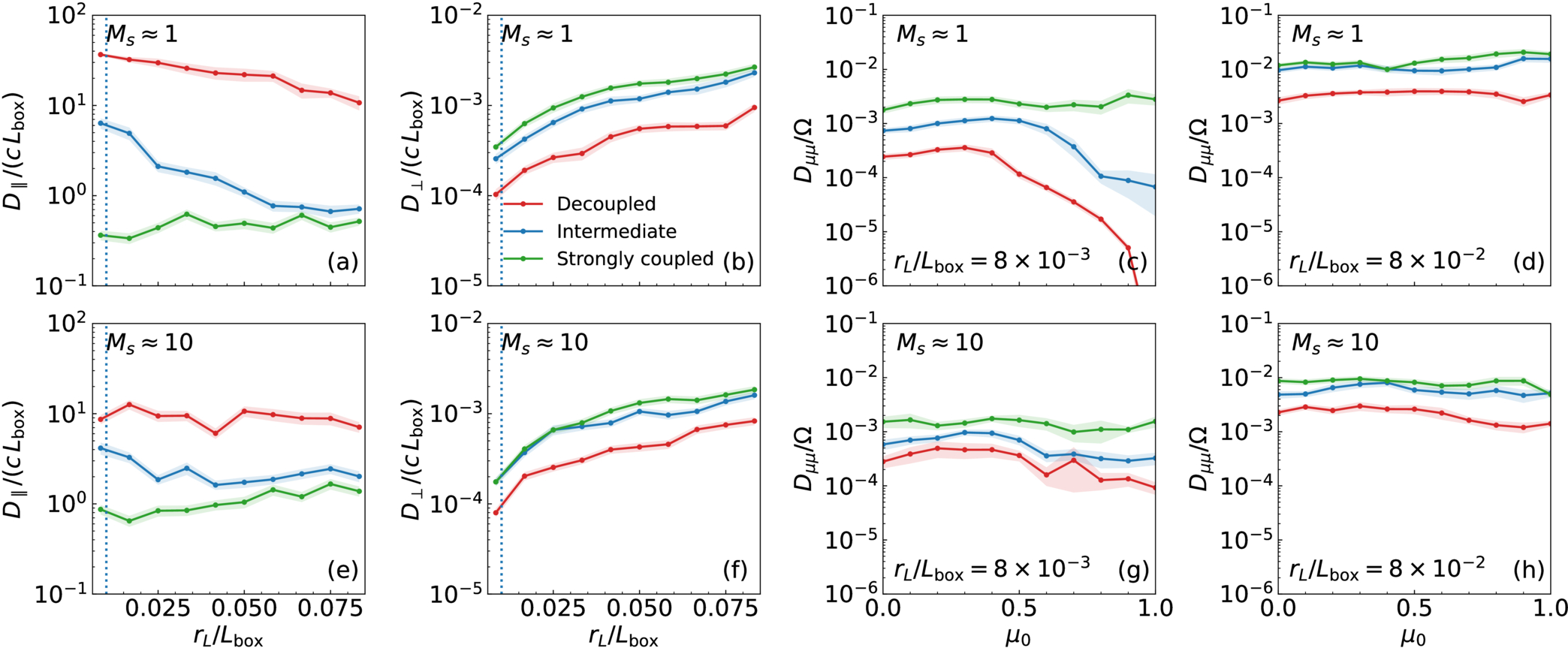

Caption: Figure 3.

Dimensionless CR transport coefficients in two-fluid turbulence at MA ≃ 1. The upper and lower rows show Ms ≃ 1 and Ms ≃ 10, respectively. Panels (a), (e), (b), and (f) give D/(cLbox) and D/(cLbox) as functions of rL/Lbox. Panels (c), (d), (g), and (h) give Dμμ/Ω as a function of μ0 for rL/Lbox ≃ 8 × 10−3 and 8 × 10−2 (rL = 10 and 100 cells). Red, blue, and green denote decoupled, intermediate, and strongly coupled runs; shaded regions indicate statistical uncertainties. The blue dotted lines in panels (a), (b), (e), and (f) denote the decoupling scale of the intermediate decoupled run.
