GWTC-4.0: Population Properties of Merging Compact Binaries
A. G. Abac et al 2026 The Astrophysical Journal Letters 1005 .

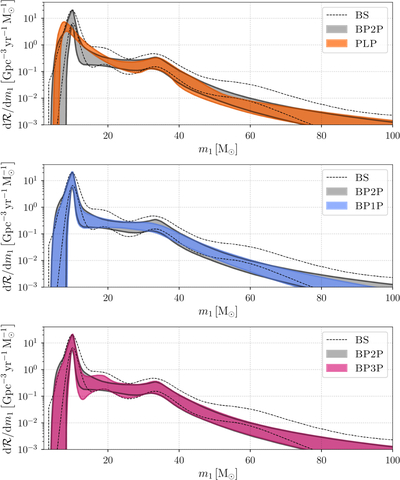

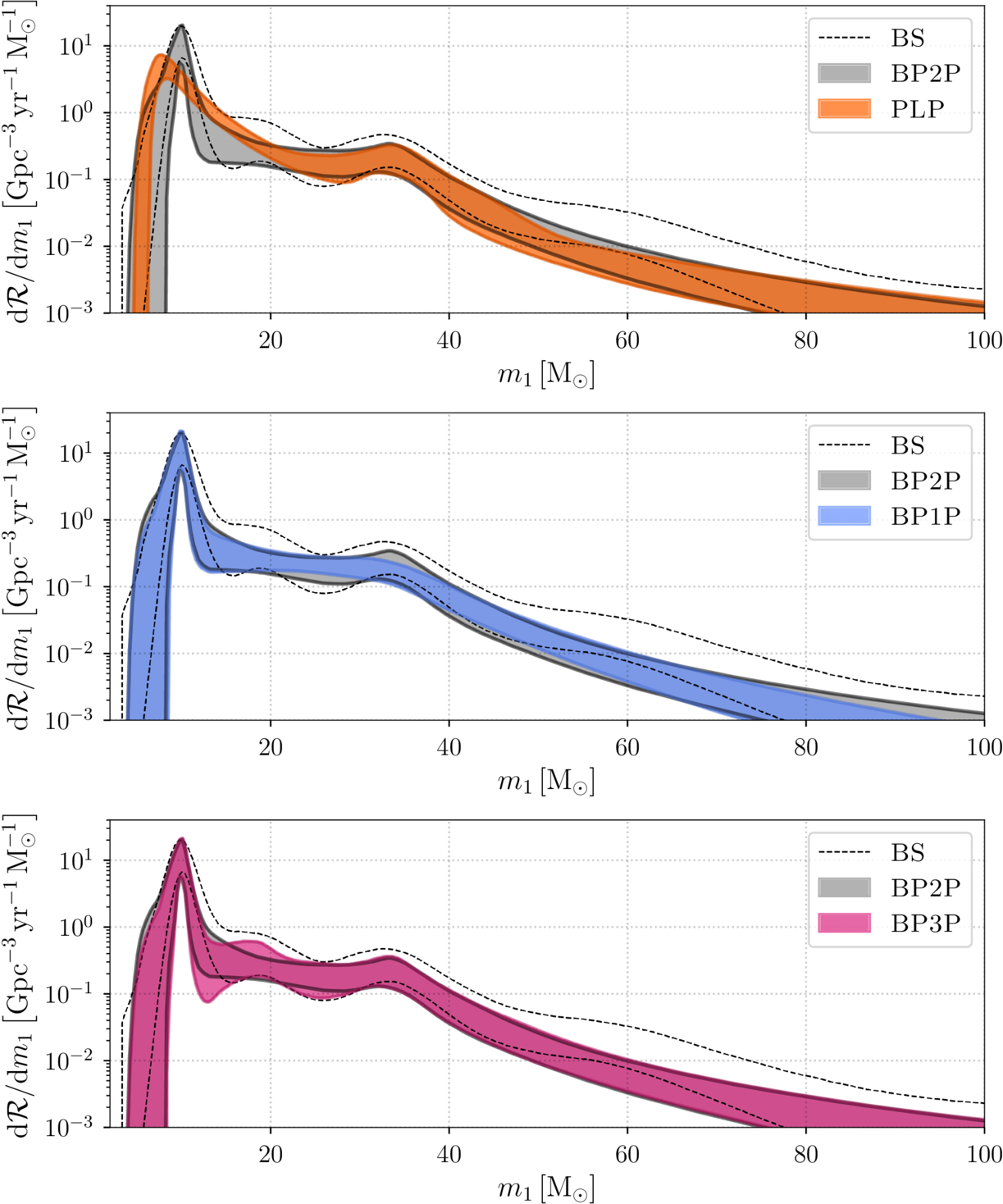

Caption: Figure 15.
Inferred mass distributions of various strongly modeled approaches compared to the fiducial mass model BROKEN POWER LAW + 2 PEAKS (gray shaded) and the B-SPLINE model (black dashed). The fiducial model from GWTC-3.0, POWER LAW + PEAK, is shown in orange, a broken power law with a single peak in blue, and a broken power law with three peaks in pink.
© 2026. The Author(s). Published by the American Astronomical Society.
