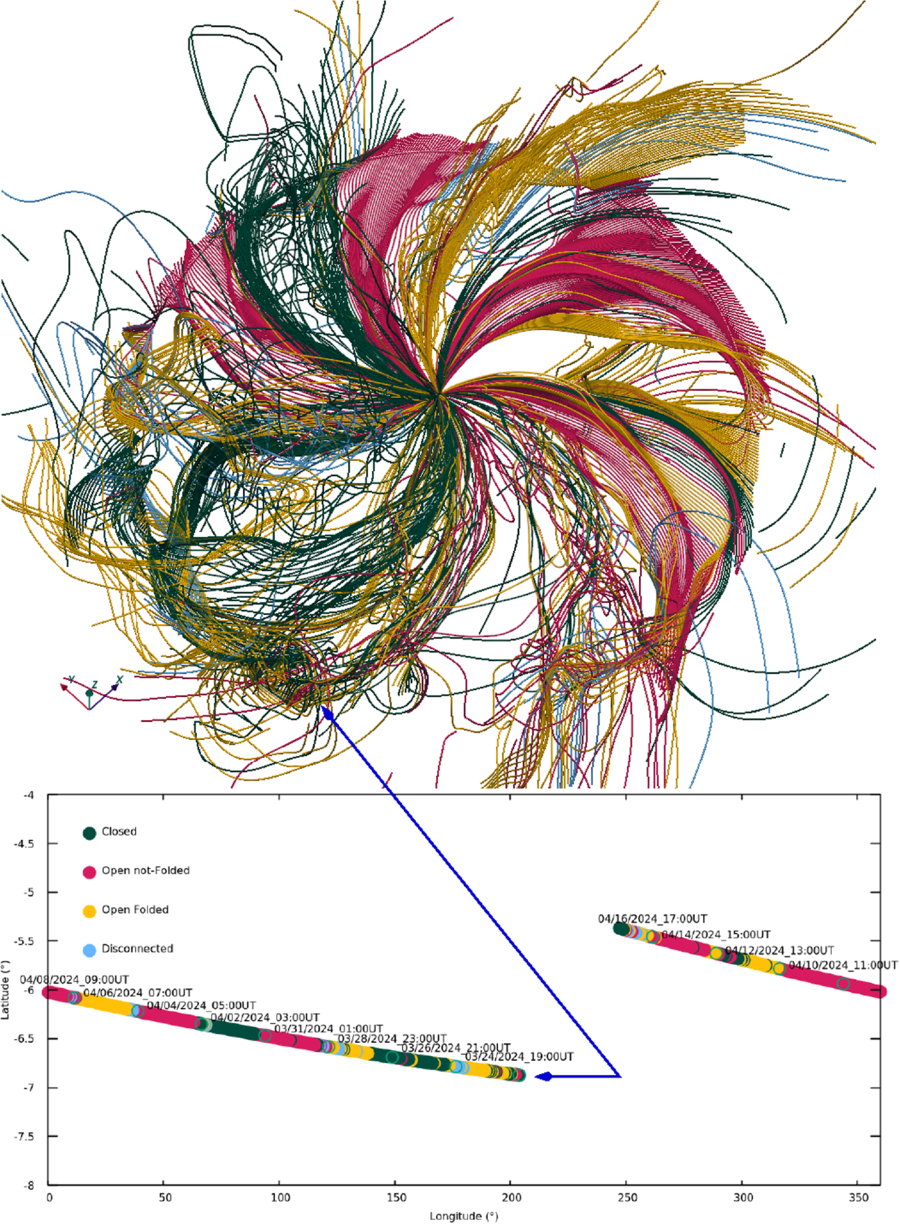

Field line connectivity along the trajectory of Earth in the E24TD calculation, from 2024 March 24 at 19:00 UT (200 hr in the simulation) to the end (2024 April 16 17:00 UT). Top: 3D rendering. An animation showing all angles is available. Bottom: the trajectory in the longitude-latitude plane. As in Figure 3, closed field lines are green, open not-folded are rose, open and folded are gold, and disconnected are sky blue. The double blue arrow shows the beginning of the trajectory.

(An animation of this figure is available in the online article.)

(An animation of this figure is available.)

The video/animation of this figure is available in the online journal.
