GWTC-4.0: An Introduction to Version 4.0 of the Gravitational-Wave Transient Catalog
A. G. Abac et al 2025 The Astrophysical Journal Letters 995 .

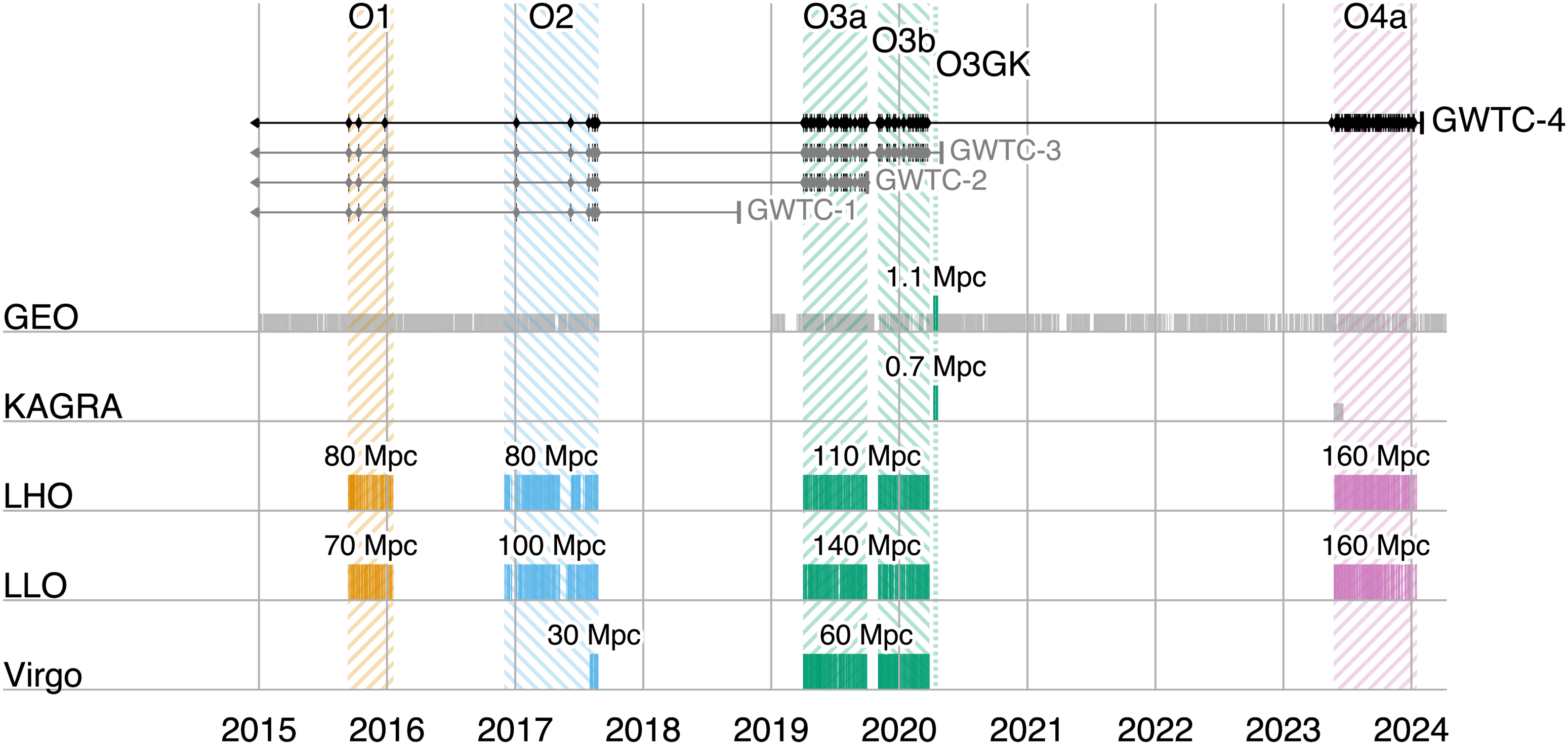

Caption: Figure 1.
The timeline of observing runs covering a time span starting from 2015 and lasting up to the beginning of O4b on 2024 April 10. The periods in which the various detectors in the network were observing are shown in this timeline, along with the typical BNS inspiral ranges for those detectors during the observing run. GEO astrowatch observing periods are shown in light gray. KAGRA observing periods during O4a, also shown in light gray, were not used for GW observational analyses. In O1 and O4a, only LHO and LLO were participating. Virgo joined these two detectors for the last month of O2 and was observing alongside them throughout O3a and O3b. At the end of O3 there was a short joint observing run, O3GK, which included GEO and KAGRA. Also shown is a timeline of the observed candidates contained in GWTC-1.0, GWTC-2.1, GWTC-3.0, and GWTC-4.0 with a probability of astrophysical origin greater than or equal to 50%. The time intervals covered by the various versions of the GWTC are bounded from above but not from below, as indicated by the arrows pointing left (see Section 1.2.1).
© 2025. The Author(s). Published by the American Astronomical Society.
