Caption: Figure 2.

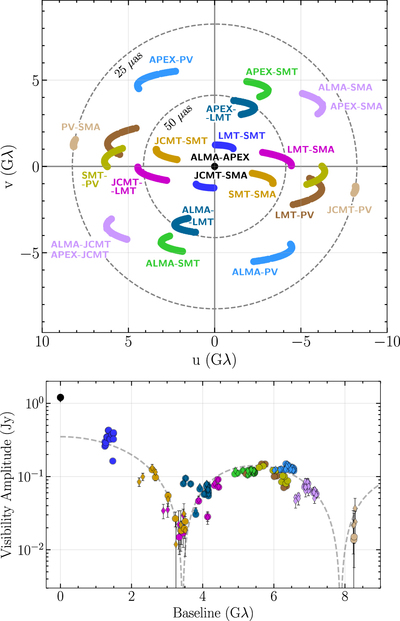

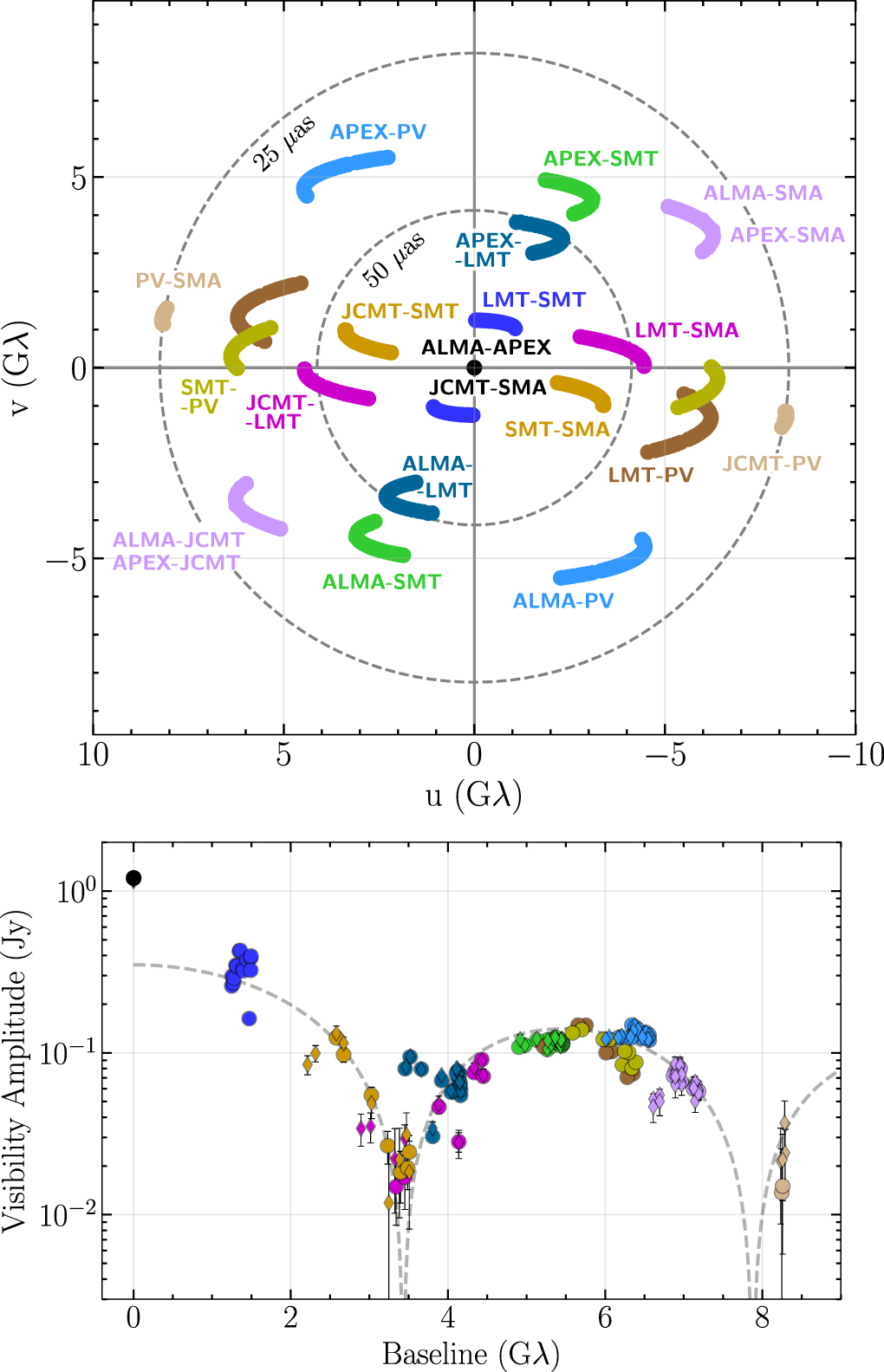

Top: (u, v) coverage for M87*, aggregated over all four days of the observations. (u, v) coordinates for each antenna pair are the source-projected baseline length in units of the observing wavelength λ and are given for conjugate pairs. Baselines to ALMA/APEX and to JCMT/SMA are redundant. Dotted circular lines indicate baseline lengths corresponding to fringe spacings of 50 and 25 μas. Bottom: final calibrated visibility amplitudes of M87* as a function of projected baseline length on April 11. Redundant baselines to APEX and JCMT are plotted as diamonds. Error bars correspond to thermal (statistical) uncertainties. The Fourier transform of an azimuthally symmetric thin ring model with diameter 46 μas is also shown with a dashed line for comparison.
