RADIOASTRON OBSERVATIONS OF THE QUASAR 3C273: A CHALLENGE TO THE BRIGHTNESS TEMPERATURE LIMIT

Authors: Y. Y. Kovalev, N. S. Kardashev, K. I. Kellermann, A. P. Lobanov, M. D. Johnson, L. I. Gurvits, P. A. Voitsik, J. A. Zensus, J. M. Anderson, U. Bach, D. L. Jauncey, F. Ghigo, T. Ghosh, A. Kraus, Yu. A. Kovalev, M. M. Lisakov, L. Yu. Petrov, J. D. Romney, C. J. Salter, and K. V. Sokolovsky

2016 The Astrophysical Journal Letters 820 L9.

Provider: AAS Journals

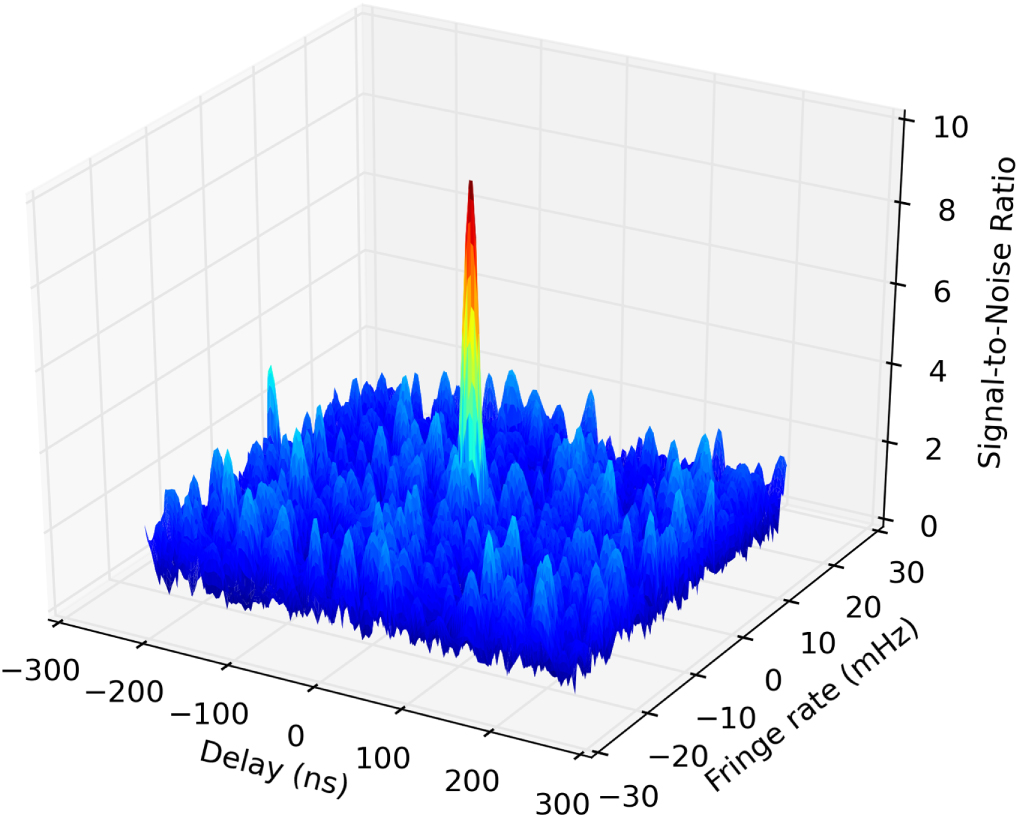

Caption: Figure 2.

RadioAstron (Space Radio Telescope–GBT) 22 GHz interferometer response from observations of the quasar 3C 273 on 2013 February 2 with a projected baseline of 7.6 Gλ. The ratio of interferometer fringe amplitude to the average noise amplitude is shown as a function of the residual delay (in nanoseconds) and fringe rate (in millihertz).
