The Low-frequency Characteristics of PSR J0437–4715 Observed with the Murchison Wide-field Array

Authors: N. D. R. Bhat, S. M. Ord, S. E. Tremblay, S. J. Tingay, A. A. Deshpande, W. van Straten, S. Oronsaye, G. Bernardi, J. D. Bowman, F. Briggs, R. J. Cappallo, B. E. Corey, D. Emrich, R. Goeke, L. J. Greenhill, B. J. Hazelton, J. N. Hewitt, M. Johnston-Hollitt, D. L. Kaplan, J. C. Kasper, E. Kratzenberg, C. J. Lonsdale, M. J. Lynch, S. R. McWhirter, D. A. Mitchell, M. F. Morales, E. Morgan, D. Oberoi, T. Prabu, A. E. E. Rogers, D. A. Roshi, N. Udaya Shankar, K. S. Srivani, R. Subrahmanyan, M. Waterson, R. B. Wayth, R. L. Webster, A. R. Whitney, A. Williams, and C. L. Williams

Bhat et al. 2014 The Astrophysical Journal Letters 791 L32.

Provider: AAS Journals

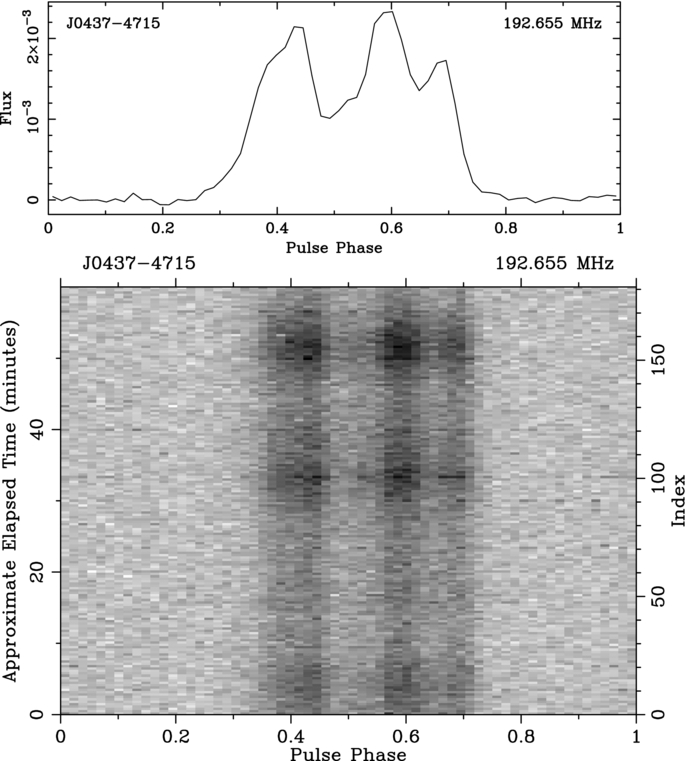

Caption: Figure 1.

Detection of PSR J0437−4715 with the MWA. The integrated pulse profile (top) and the pulse strength vs. time and pulse phase (bottom) are shown for the 1 hr of observation centered at 192.6 MHz over a bandwidth of 15.36 MHz ("index" on right-hand side of the bottom panel refers to a 20 s sub-integration). Data are de-dispersed, and the residual dispersive smearing within 10 kHz channels is ≈35 μs, smaller than the 100 μs time resolution.
