Propagation of Waves in Weakly Ionized Two-fluid Plasmas. II. Nonlinear Alfvénic Waves

  • Authors: David Martínez-Gómez

David Martínez-Gómez 2026 The Astrophysical Journal 1004 .

  • Provider: AAS Journals

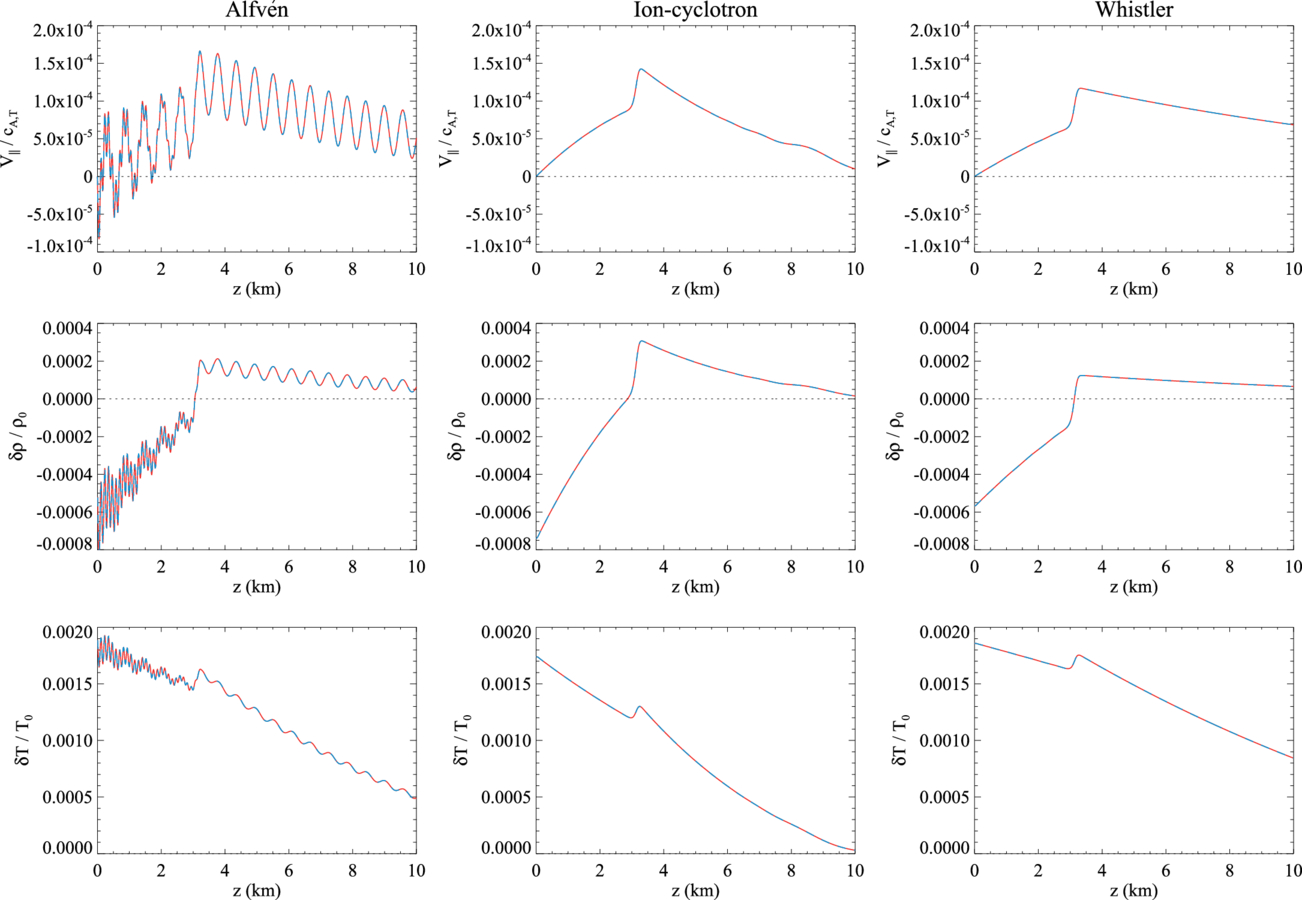

Caption: Figure 6.

Normalized perturbations of the longitudinal component of velocity (top row), density (middle row), and temperature (bottom row) from simulations of Alfvén waves (left column), ion-cyclotron waves (center column), and whistler waves (right column) with a period of τ = 0.02 s and driving amplitude Ac = 0.01 cA,T. Case of a plasma with np = 1.4 × 1015 m−3, χ = 100, B0 = 10 G, and νnc = 100ω. The red solid lines correspond to the results for the charged fluid, while the blue dashed lines represent the results for the neutral fluid, computed at the time t = 15τ.
