Compressible Turbulence as a Source of Particle Beams and Ion Bernstein Waves in Collisionless Plasmas

  • Authors: Chuanpeng Hou, Huirong Yan, Siqi Zhao

Chuanpeng Hou et al 2026 The Astrophysical Journal 1004 .

  • Provider: AAS Journals

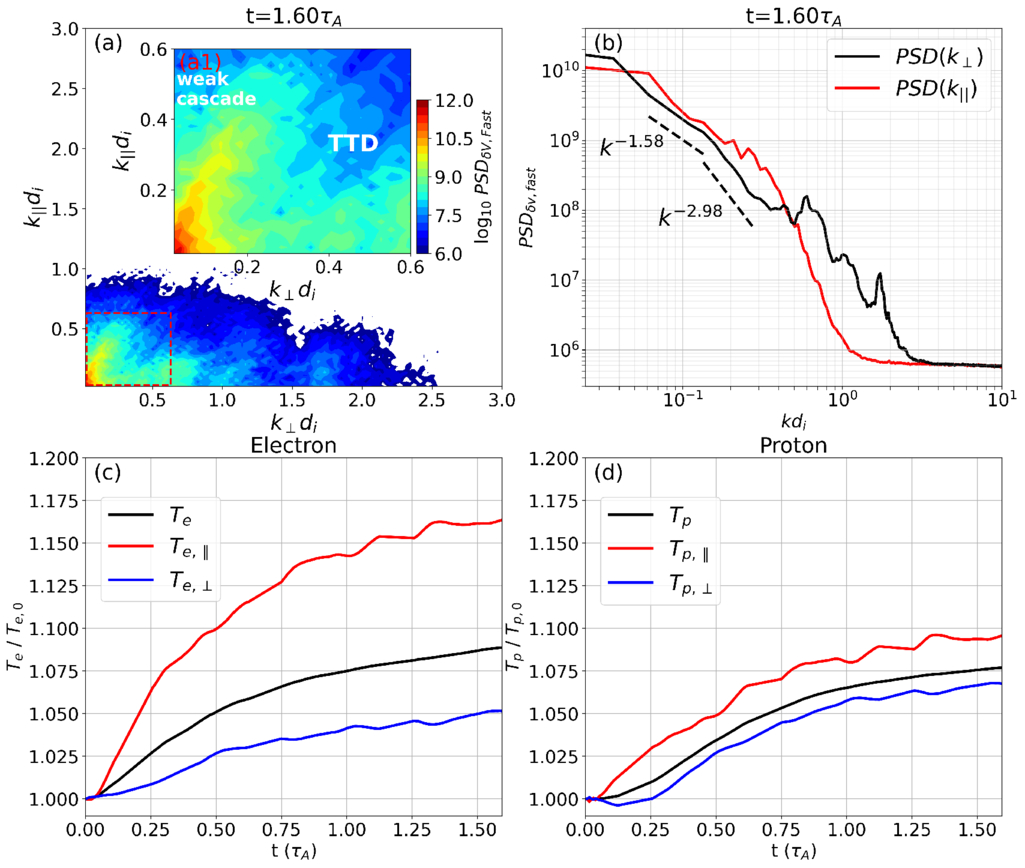

Caption: Figure 1.

Energy distribution of compressible turbulence and the evolution of particle temperatures. (a) Energy distribution of compressible turbulence in the k − k space. (a1) Zoomed-in view corresponding to the red dashed box in panel (a). (b) 1D integrated PSD. (c) Temporal evolution of the electron temperature components, normalized by initial temperature. (d) The same as panel (c) but for protons.
