Figure 2 from Mechanism of Spontaneous Formation of Stable Magnetic Structures on the Sun

Image Details

View Article Bookmark & Share

Choose export citation format:

Export Citation

Hi-Resolution Export to PDF PPT Format

Mechanism of Spontaneous Formation of Stable Magnetic Structures on the Sun

Authors: I. N. Kitiashvili, A. G. Kosovichev, A. A. Wray, and N. N. Mansour

KITIASHVILI et al. 2010 The Astrophysical Journal 719 307.

Provider: AAS Journals

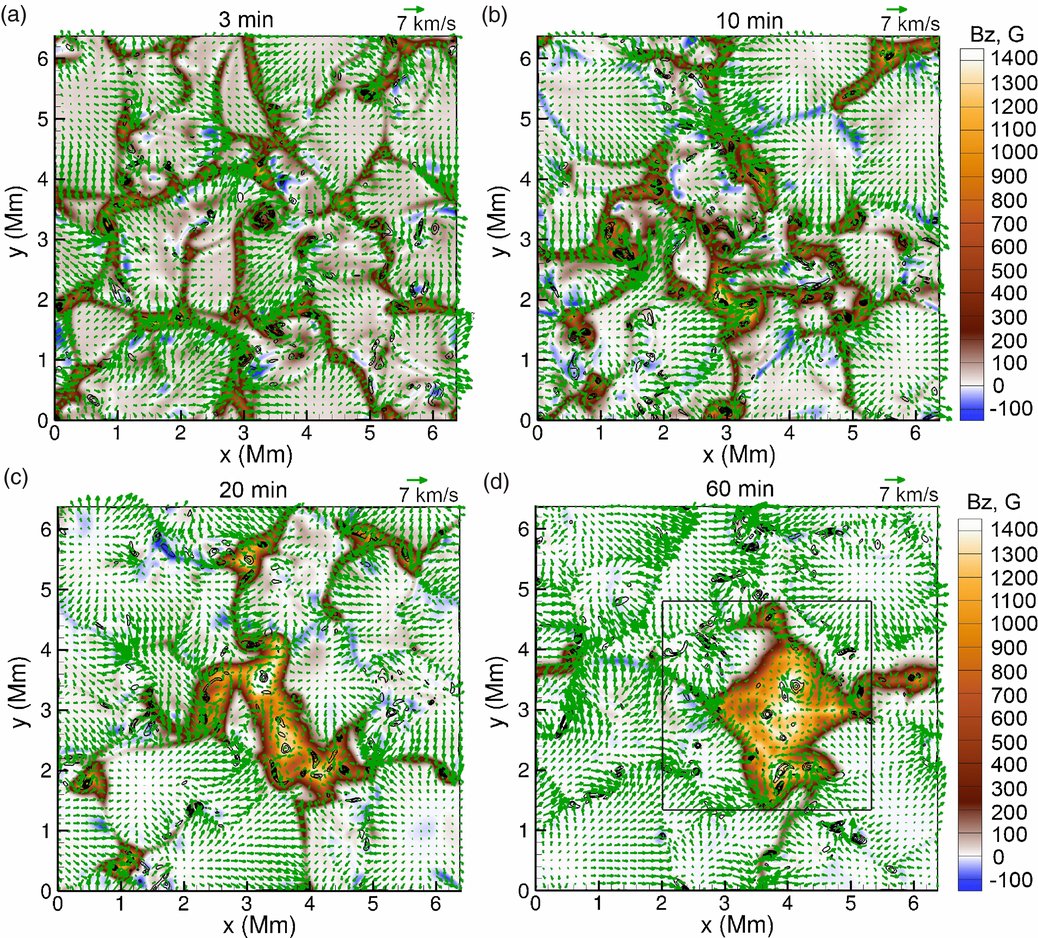

Caption: Figure 2.

Snapshots of the surface distribution of vertical magnetic field (color background), horizontal flows (arrows), and vorticity magnitude (black contour lines) for four moments of time: 3, 10, 20, and 60 min from the moment of initiation of a uniform magnetic field ( Bz ₀ = 100 G).
