Subarray Processing for Projection-based RFI Mitigation in Radio Astronomical Interferometers

Authors: Mitchell C. Burnett, Brian D. Jeffs, Richard A. Black, and Karl F. Warnick

2018 The Astronomical Journal 155 146.

Provider: AAS Journals

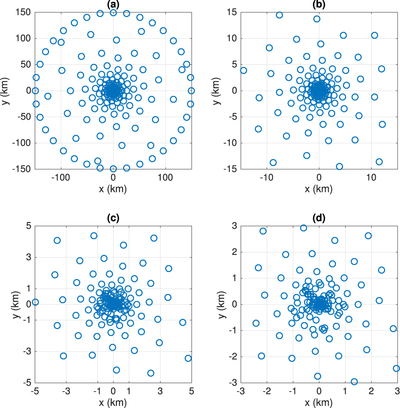

Caption: Figure 2.

(a) One proposed ngVLA configuration consists of 300 antennas with the longest baselines extending to 300 km. This configuration also includes a dense core with 20% of the elements inside the radius of 0.6 km. (b)–(d) Magnified into the core at 15 km, 5 km, and 3 km radius scales, respectively.
