A Generalized Phase Diversity Technique Using Multiple Defocused Images

  • Authors: F. J. Bailén, D. Orozco Suárez, J. Blanco Rodríguez, J. C. del Toro Iniesta

F. J. Bailén et al 2022 The Astrophysical Journal Supplement Series 263 .

  • Provider: AAS Journals

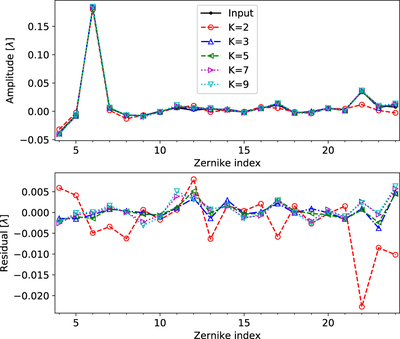

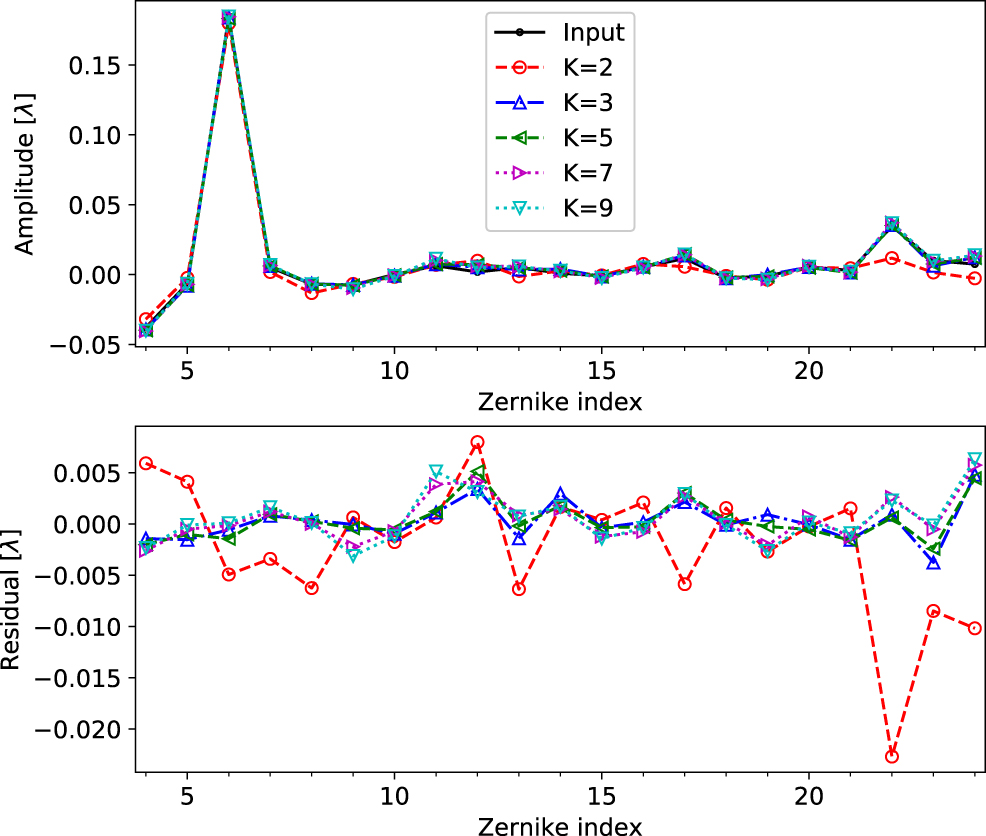

Caption: Figure 1.

The top panel shows the Zernike coefficients (in wavelength units) of the true incident wave front (black solid) and the retrieved coefficients for different symmetric choices of the phase diversities: K = 2 (dashed red), K = 3 (dashed–dotted blue), K = 5 (dashed green), K = 7 (dotted magenta), and K = 9 (dotted cyan). The bottom panel shows a residual of the fitting of the Zernike coefficients displayed in the top panel.
