A Comprehensive Comparison of Relativistic Particle Integrators

  • Authors: B. Ripperda, F. Bacchini, J. Teunissen, C. Xia, O. Porth, L. Sironi, G. Lapenta, and R. Keppens

2018 The Astrophysical Journal Supplement Series 235 21.

  • Provider: AAS Journals

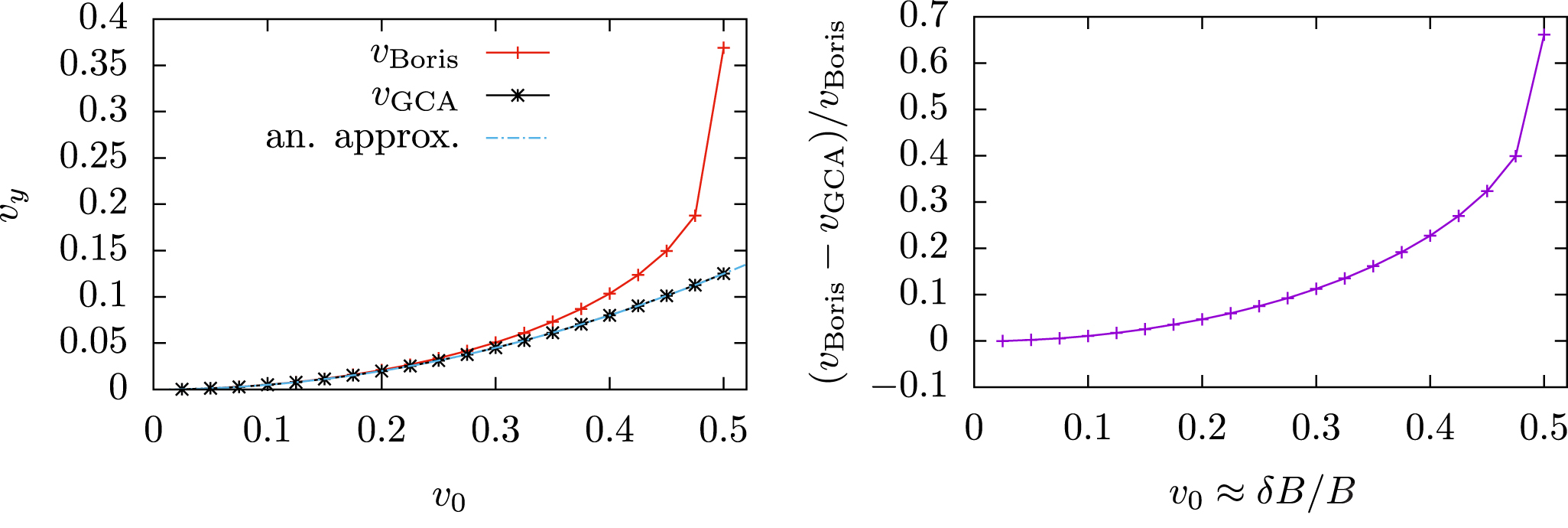

Caption: Figure 13.

Left: the ﹩{\rm{\nabla }}B﹩ drift velocity vy for a magnetic field with a linear gradient. Results are shown for the Boris method, the guiding center approximation, and for the approximation of Equation (65). Right: relative difference in the ﹩{\rm{\nabla }}B﹩ drift velocity of the GCA compared to the Boris method. For this test case, ﹩\delta B/B\approx {v}_{0}﹩ (omitting SI units).
