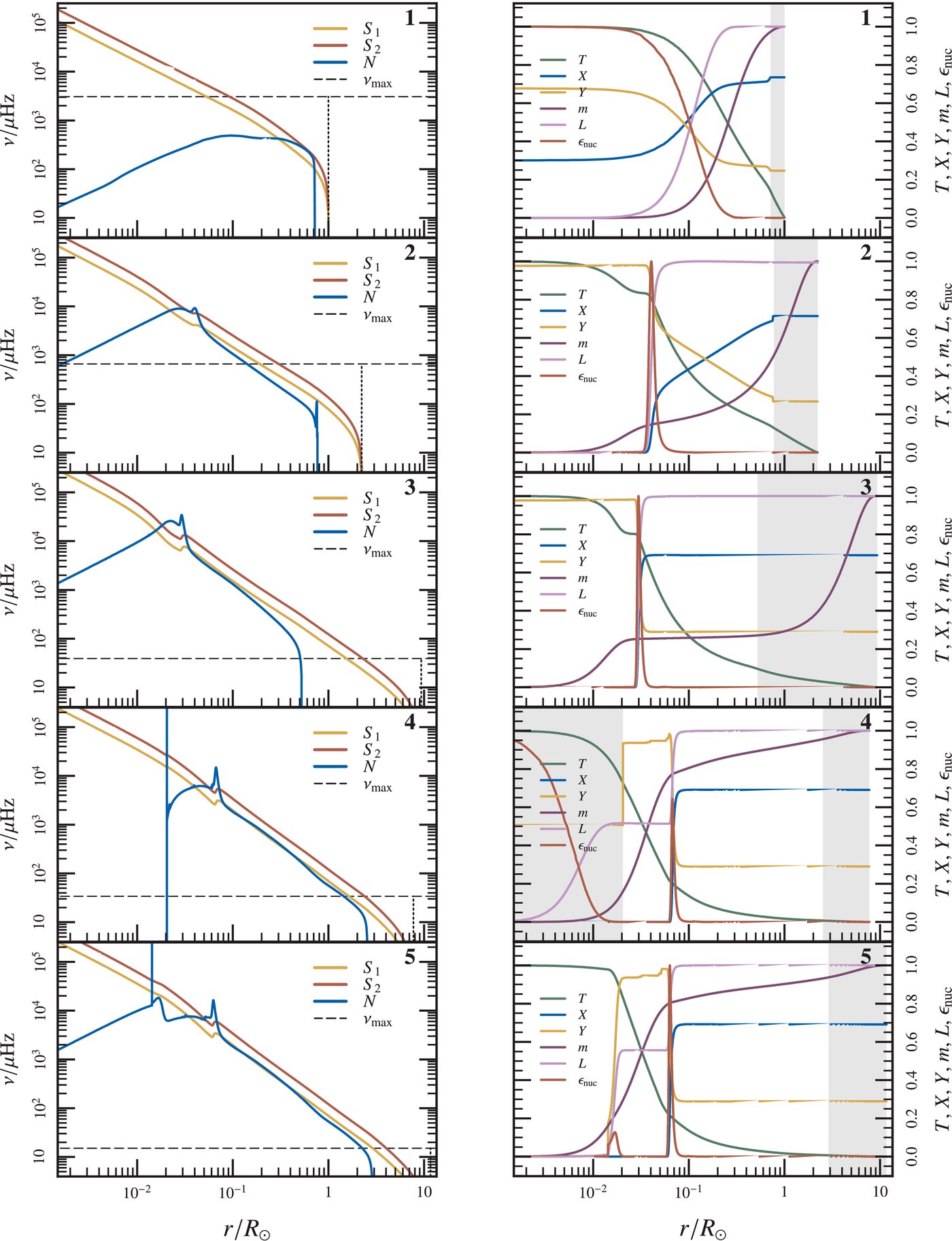

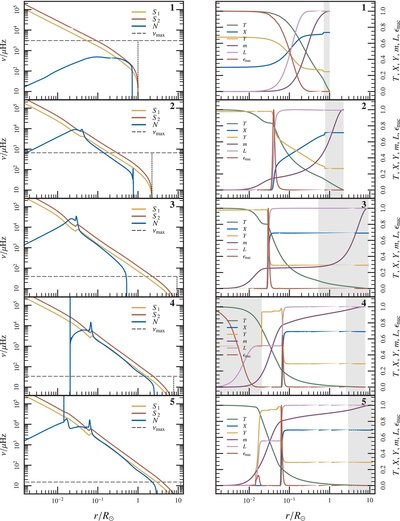

Internal structure of the five points (indicated by the numbers in each panel) marked in Figure
5. The left panel for each point shows
N and
S
ℓ for harmonic degrees ℓ = 1 and 2. The dashed line indicates the frequency of maximum power ν
max of the stochastically excited solar-like modes. The vertical dotted lines mark the radius of the model. Right panels show
temperature, hydrogen and helium mass fractions, mass, luminosity, and the nuclear energy generation rate. Gray areas mark
convective regions according to the Schwarzschild criterion.
