COS Observations of the Cosmic Web: A Search for the Cooler Components of a Hot, X-Ray Identified Filament

  • Authors: Thomas Connor, Fakhri S. Zahedy, Hsiao-Wen Chen, Thomas J. Cooper, John S. Mulchaey, and Alexey Vikhlinin

2019 The Astrophysical Journal Letters 884 L20.

  • Provider: AAS Journals

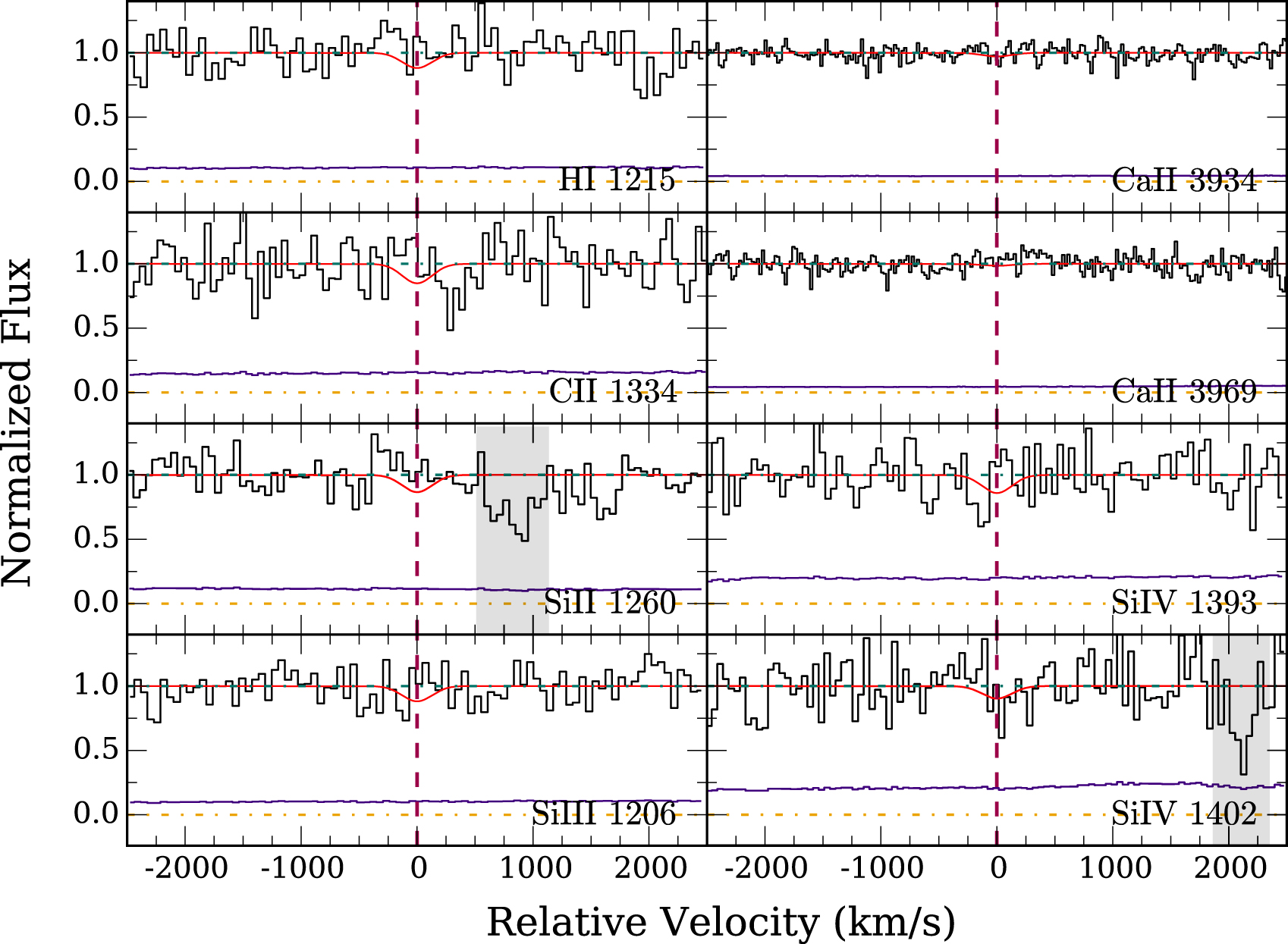

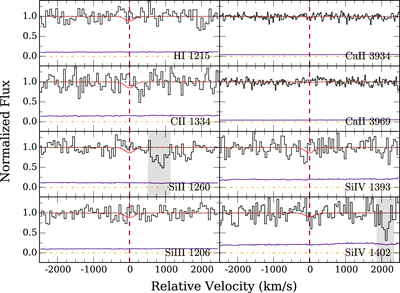

Caption: Figure 3.

Continuum-normalized spectrum for different absorption transitions along QSO 0102−2209 at d = 1090 pkpc (0.7Rvir) from the center of A133. The absorption transition is identified in the bottom right corner of each panel. Zero velocity marks the redshift of A133 at z = 0.05584. The 1σ error spectrum is included in purple above the zero-flux level. Contaminating features (Galactic C II λ1334 and an unassociated intervening absorber) have been grayed out for clarity. We find no evidence of the presence of cooler gas within ±2500 km s−1 from the cluster redshift, with a sensitive 2σ column density upper limit of log (NH I/cm−2) < 13.7 for neutral hydrogen H I absorption. The 2σ upper limits on these absorption transitions are plotted in red curves for a single-component Voigt profile with b = 20 km s−1.
