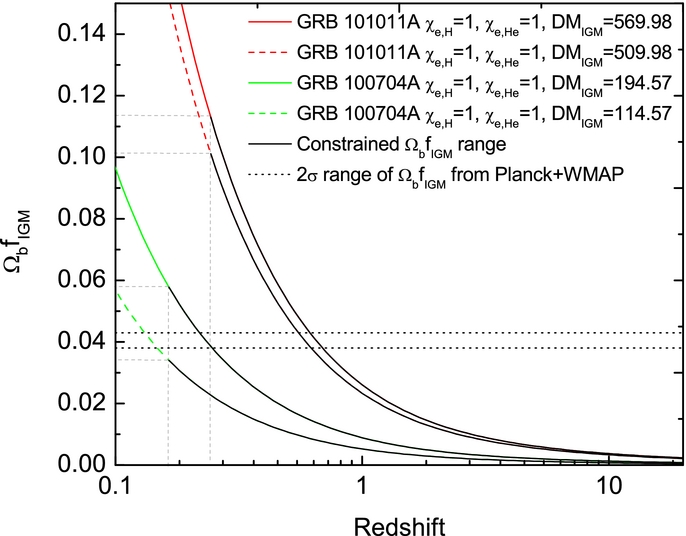

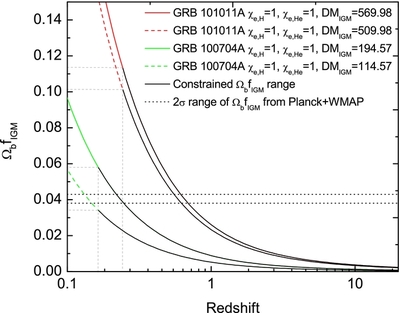

Caption: Figure 2.
Constraints on Ω b f IGM using the two FRB/GRB systems. Solid lines are calculated with DM tot, while dashed lines are calculated with the estimated DM IGM. The red lines are for GRB 101011A, while green lines are for GRB 100704A. The black solid line regime corresponds to the constrained range of Ω b f IGM. The horizontal black dotted lines are the favored region of the Planck+ WMAP results (Ade et al. 2013) corrected for f IGM = 0.83 derived from Fukugita et al. (1998). The intersection of this band with the four lines give estimates of the redshifts of the two FRB/GRB systems: z = (0.554, 0.687) for GRB 101011A and z = (0.130, 0.246) for GRB 100704A.
