Figure 3 from The Great Oxidation of Earth's Atmosphere: Contesting the Yoyo Model Via Transition Stability Analysis

Image Details

View Article Bookmark & Share

Choose export citation format:

Export Citation

Hi-Resolution Export to PDF PPT Format

The Great Oxidation of Earth's Atmosphere: Contesting the Yoyo Model Via Transition Stability Analysis

Authors: M. Cuntz, D. Roy, and Z. E. Musielak

CUNTZ, ROY, & MUSIELAK 2009 The Astrophysical Journal 706 L178.

Provider: AAS Journals

Caption: Figure 3.

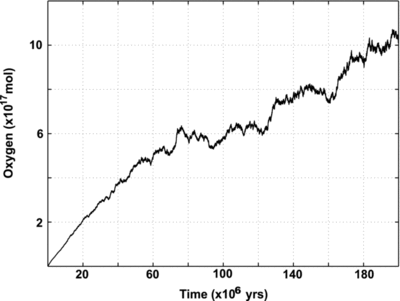

Depiction of the increase in oxygen concentration based on an exponential law for the reductant input function r( t) with α = 1.4. We also assume square root white noise with σ = 0.5. Note that 10 ¹⁸ mol O ₂ correspond to 2.6 × 10 ⁻² PAL.
