Probing the Inner Edge of Dead Zones in Protoplanetary Disks with ALMA and Next Generation Very Large Array

Authors: Takahiro Ueda, Luca Ricci, Mario Flock, and Zachary Castro

2022 The Astrophysical Journal 928 110.

Provider: AAS Journals

Caption: Figure 3.

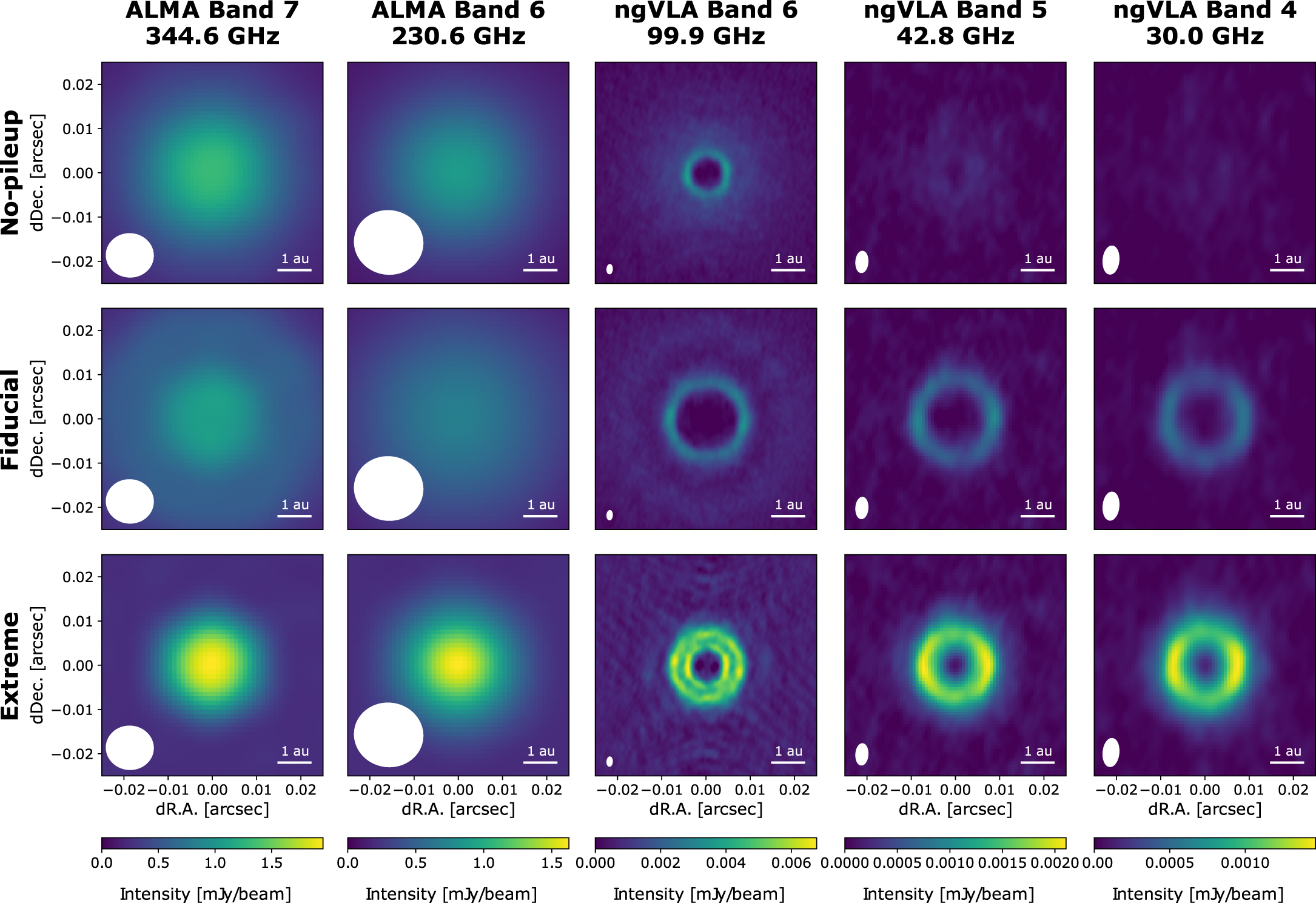

Synthetic images of the innermost region of disks observed with ALMA and ngVLA. Each row corresponds to the No-pileup (top), Fiducial (middle), and Extreme (bottom) model. The integration time is set to 10 hr. The observing beam size is denoted with a white-filled ellipse at the lower left in each panel.
