Trapping of Cosmic Rays in MHD Turbulence

  • Authors: Siyao Xu, and Alex Lazarian

2020 The Astrophysical Journal 894 63.

  • Provider: AAS Journals

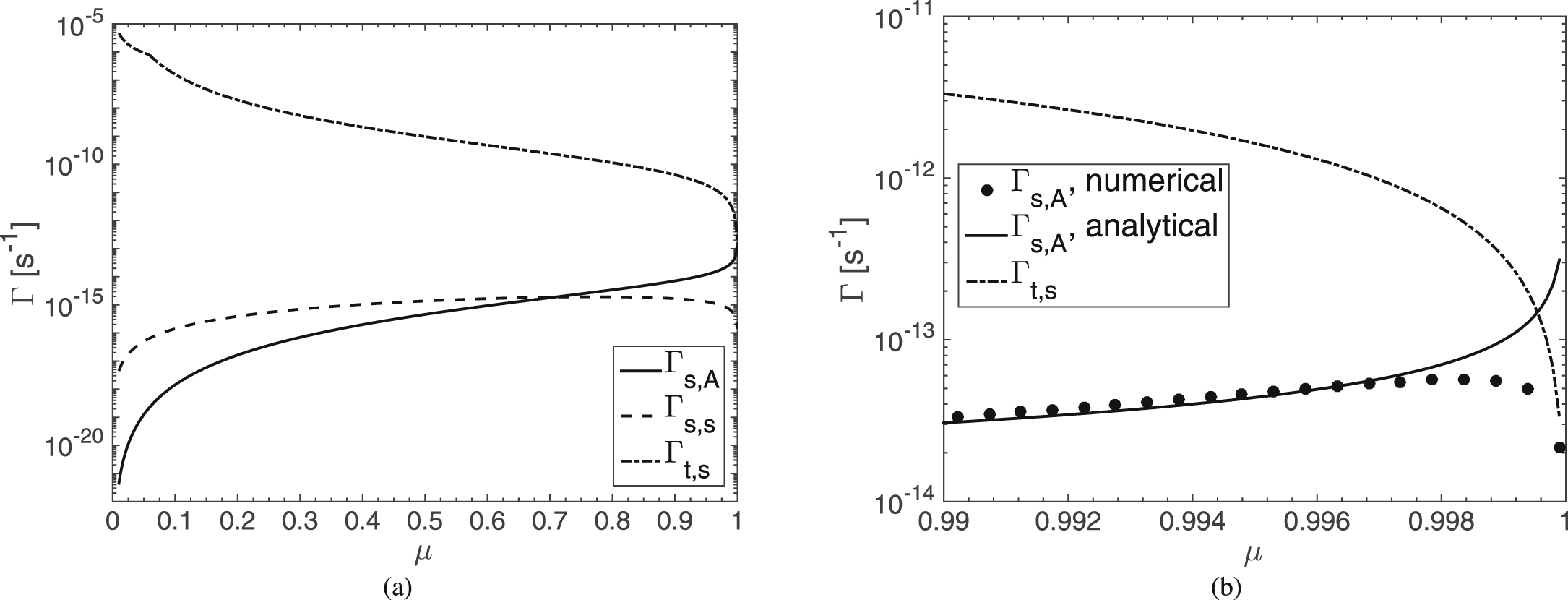

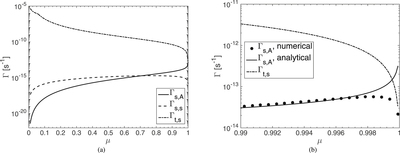

Caption: Figure 6.

(a) ﹩{{\rm{\Gamma }}}_{t,s}﹩ in comparison with ﹩{{\rm{\Gamma }}}_{s,{\rm{A}}}﹩ and ﹩{{\rm{\Gamma }}}_{s,s}﹩ in incompressible MHD turbulence for TeV CRs, with the analytical expressions given by Equations (36), (38), (45), and (46). (b) Zoom of (a) near μ = 1. The numerical evaluation of ﹩{{\rm{\Gamma }}}_{s,{\rm{A}}}﹩ is obtained by using the numerical calculation of ﹩{D}_{\mu \mu ,\mathrm{QLT},{\rm{A}}}﹩ in Equation (1).
