Dissociative Excitation of Acetylene Induced by Electron Impact: Excitation-emission Cross-sections

  • Authors: Juraj Országh, Marián Danko, Peter Čechvala, and Štefan Matejčík

2017 The Astrophysical Journal 841 17.

  • Provider: AAS Journals

Caption: Figure 1.

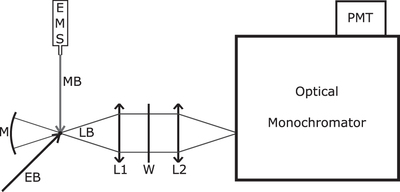

Scheme of the experimental setup. EMS—effusive molecular source; MB—molecular beam; EB—electron beam; M—spherical mirror; L1, L2—plano-convex fused silica lenses; W—MgF2 window mounted in the wall of the vacuum chamber; PMT—photomultiplier tube detector.
