Save the Planet, Feed the Star: How Super-Earths Survive Migration and Drive Disk Accretion

  • Authors: Jeffrey Fung, and Eugene Chiang

2017 The Astrophysical Journal 839 100.

  • Provider: AAS Journals

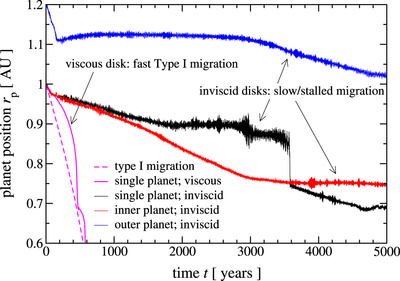

Caption: Figure 1.

Type I migration can be defeated for super-Earths in inviscid disks. Shown here are the orbital radii vs. time of planets in three of our simulations: a single 10 M planet in a gas-rich (Σ0 = 8.5 × 103 g cm−2) viscous (α = 10−3) disk (blue, model 1); a single planet of the same mass in a gas-rich inviscid (α = 0) disk (black, model 2); and two such planets in a gas-rich inviscid disk (red+magenta, model 3). The blue dashed line is the theoretically expected trajectory from Type I migration (the integral of Equation (13) with C = 2).
