EBL Inhomogeneity and Hard-Spectrum Gamma-Ray Sources

  • Authors: Hassan Abdalla, and Markus Böttcher

2017 The Astrophysical Journal 835 237.

  • Provider: AAS Journals

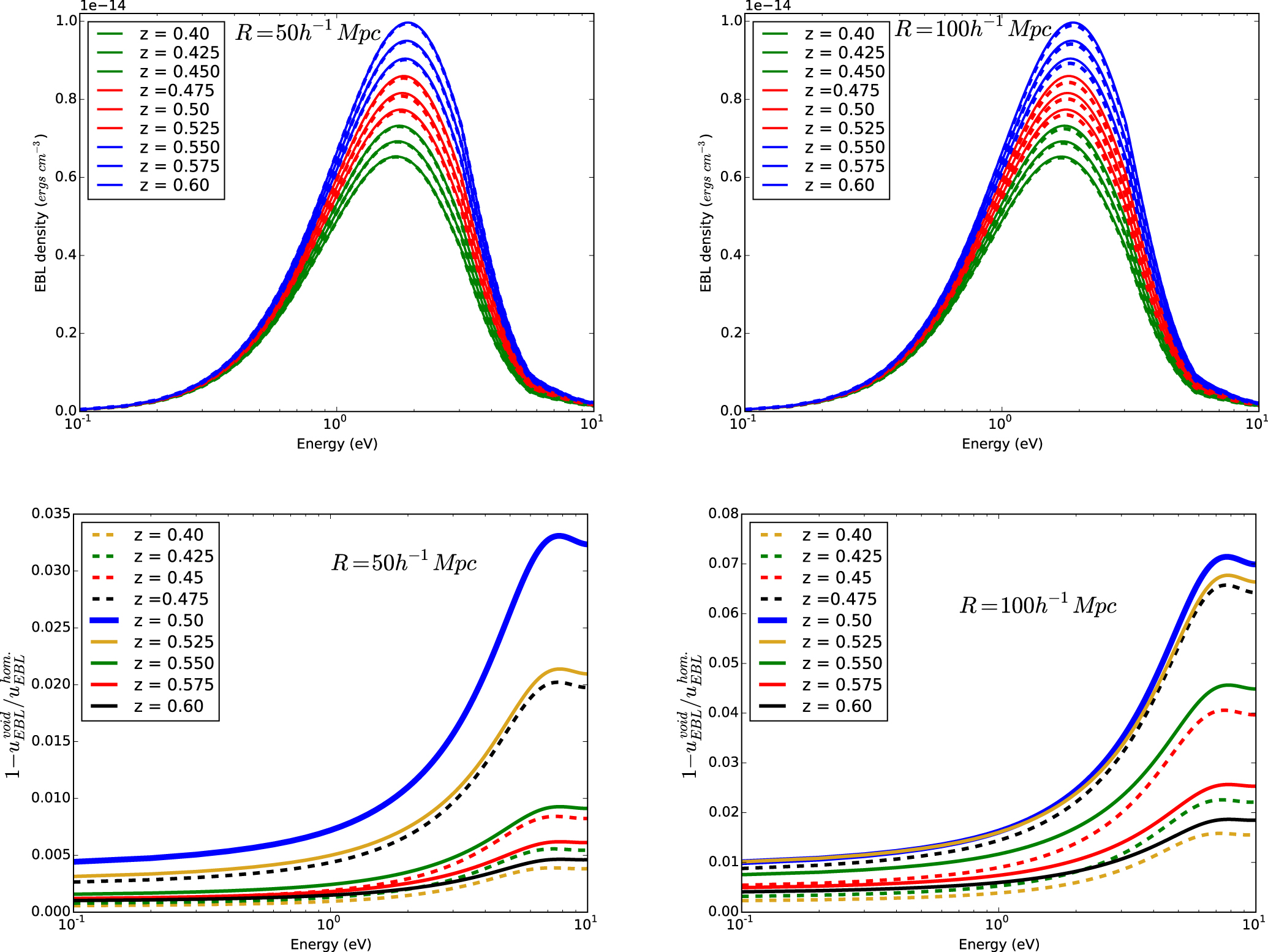

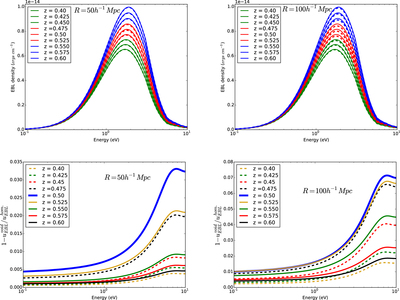

Caption: Figure 2.

Top panels: angle-averaged EBL photon energy density spectra for a homogeneous EBL (solid lines) and in the presence of a spherical cosmic void (dashed lines) with its center at redshift zv = 0.5 (comoving distance of 1.724 Gpc) and with radius R = 50 h−1 Mpc (left) and R = 100 h−1 (right). Green curves indicate locations in front of the void, red curves those within the void, and blue curves those behind the void. Bottom panels: relative deficit of the EBL energy density due to the void.
