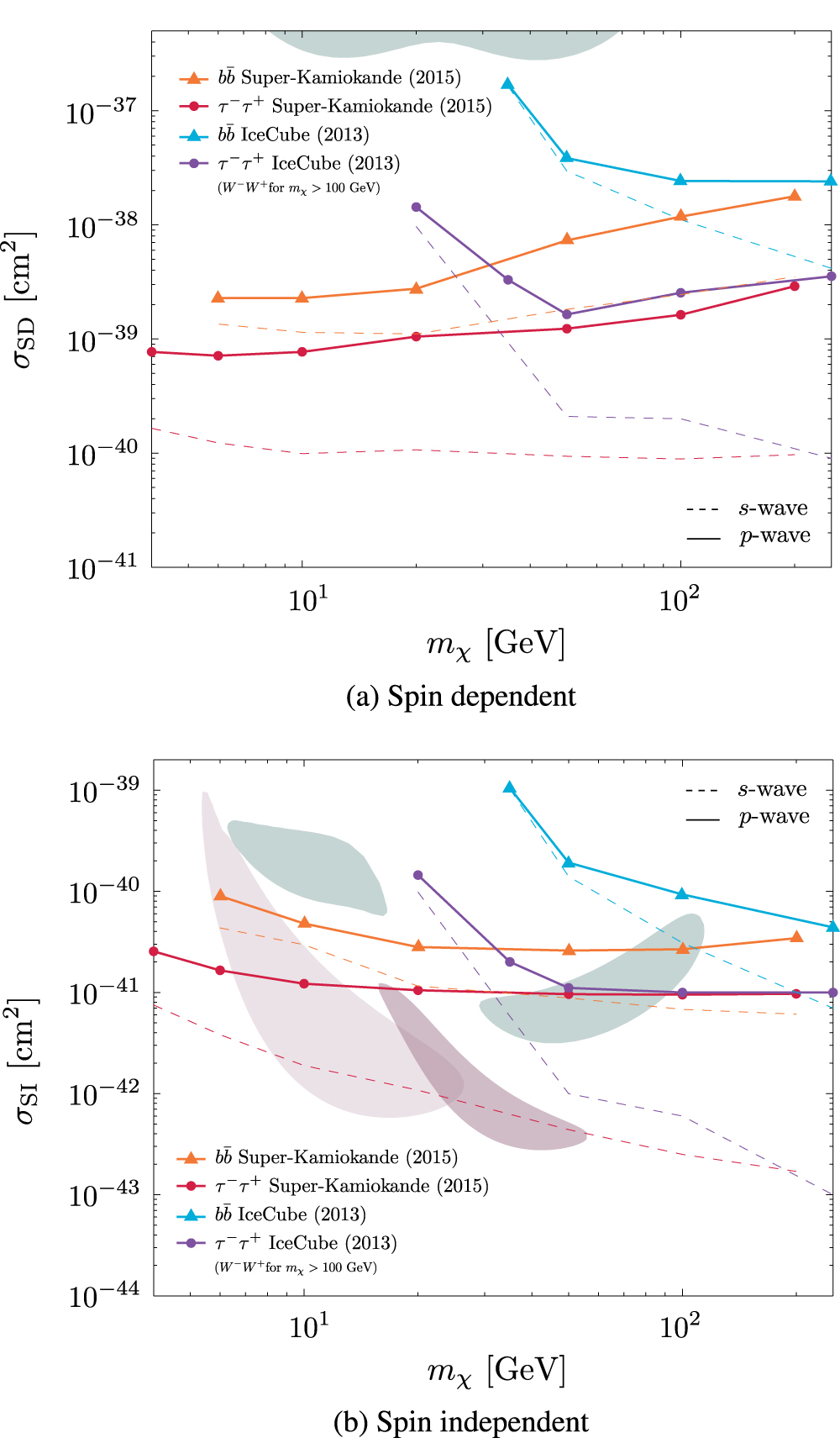

Caption: Figure 5.
Limits in the SD and SI scattering cross-section placed by the Super-Kamiokande and IceCube neutrino detectors. Dashed: limits for the s-wave annihilation case (standard). Solid: limits for p-wave annihilation. The favored regions from different direct detection are also shown. Pink: CDMS II Si at 95% C.L. (Agnese et al. 2013); Green: DAMA/LIBRA at ﹩3\sigma ﹩ C.L. (Bernabei et al. 2008); Purple: CRESSTII at ﹩2\sigma ﹩ C.L. (Angloher et al. 2012).
