TWO TRANSITING LOW DENSITY SUB-SATURNS FROM K2

  • Authors: Erik A. Petigura, Andrew W. Howard, Eric D. Lopez, Katherine M. Deck, Benjamin J. Fulton, Ian J. M. Crossfield, David R. Ciardi, Eugene Chiang, Eve J. Lee, Howard Isaacson, Charles A. Beichman, Brad M. S. Hansen, Joshua E. Schlieder, and Evan Sinukoff

2016 The Astrophysical Journal 818 36.

  • Provider: AAS Journals

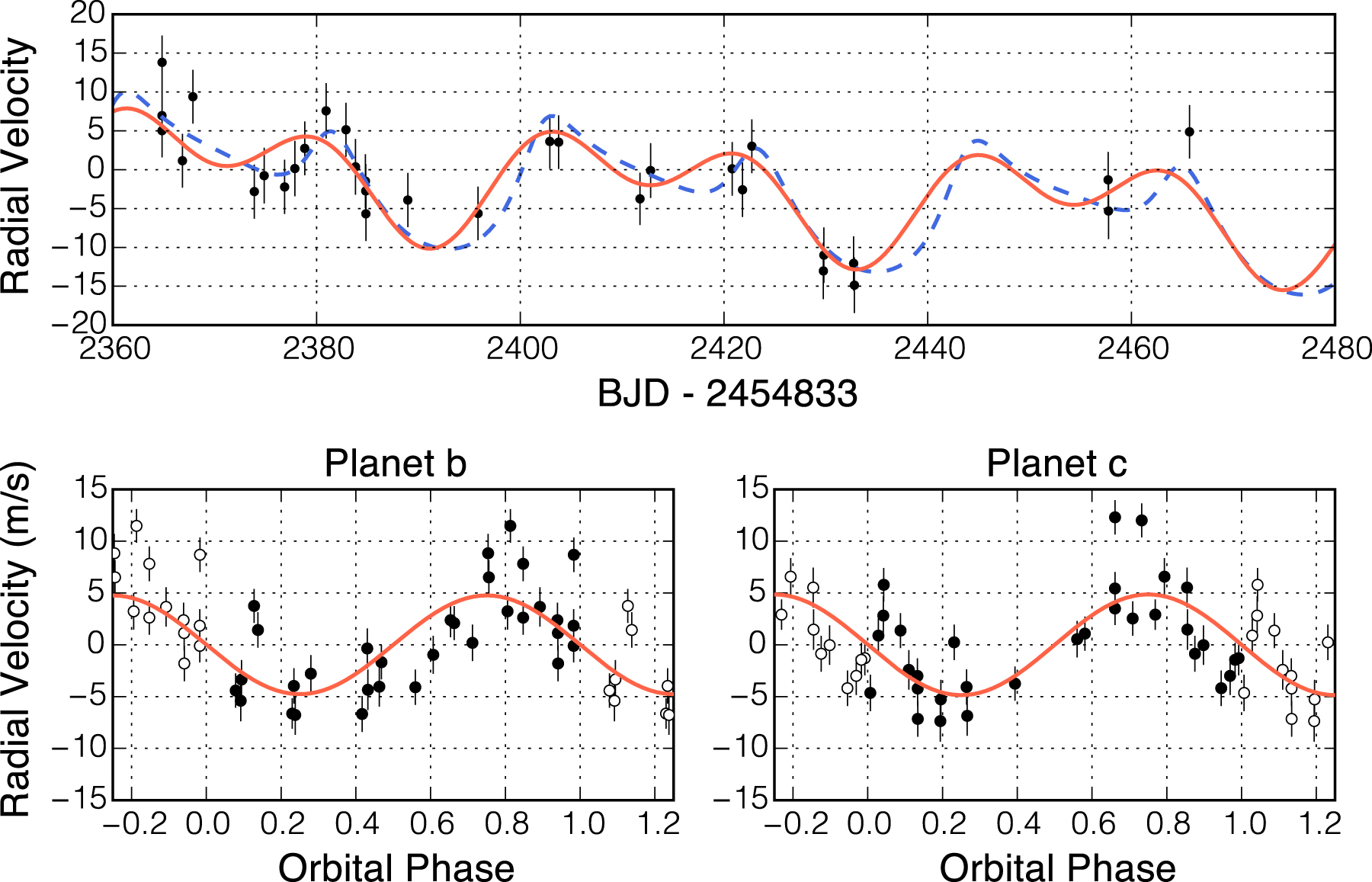

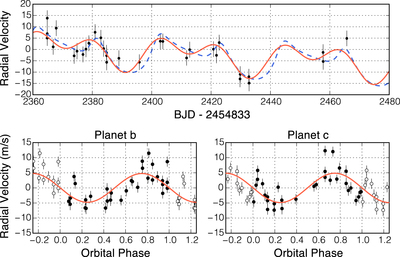

Caption: Figure 5.

The top panel shows the radial velocity time series collected using Keck/HIRES between 2015 June 24 and October 03. The red line shows the best fit Keplerian, assuming a circular orbit. The blue dashed line shows the best fit Keplerian allowing for eccentricity to vary. While the eccentric solution has higher likelihood than the circular solution ﹩\mathrm{ln}{ \mathcal L }﹩ = −85.3 vs. −80.1, it comes at the expense of more free parameters. We adopt the circular solution as our system parameters. The bottom panels show the RVs folded on the ephemerides of planet b and c. In these plots, the contribution of the other planet as well as the contribution from the trend (parametrized by γ and ﹩{dv}/{dt}﹩) has been removed.
