A Survey for Planetary Nebulae in M31 Globular Clusters

  • Authors: George H. Jacoby, Robin Ciardullo, Orsola De Marco, Myung Gyoon Lee, Kimberly A. Herrmann, Ho Seong Hwang, Evan Kaplan, and James E. Davies

Jacoby et al. 2013 The Astrophysical Journal 769 10.

  • Provider: AAS Journals

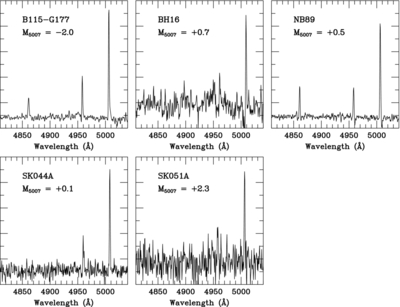

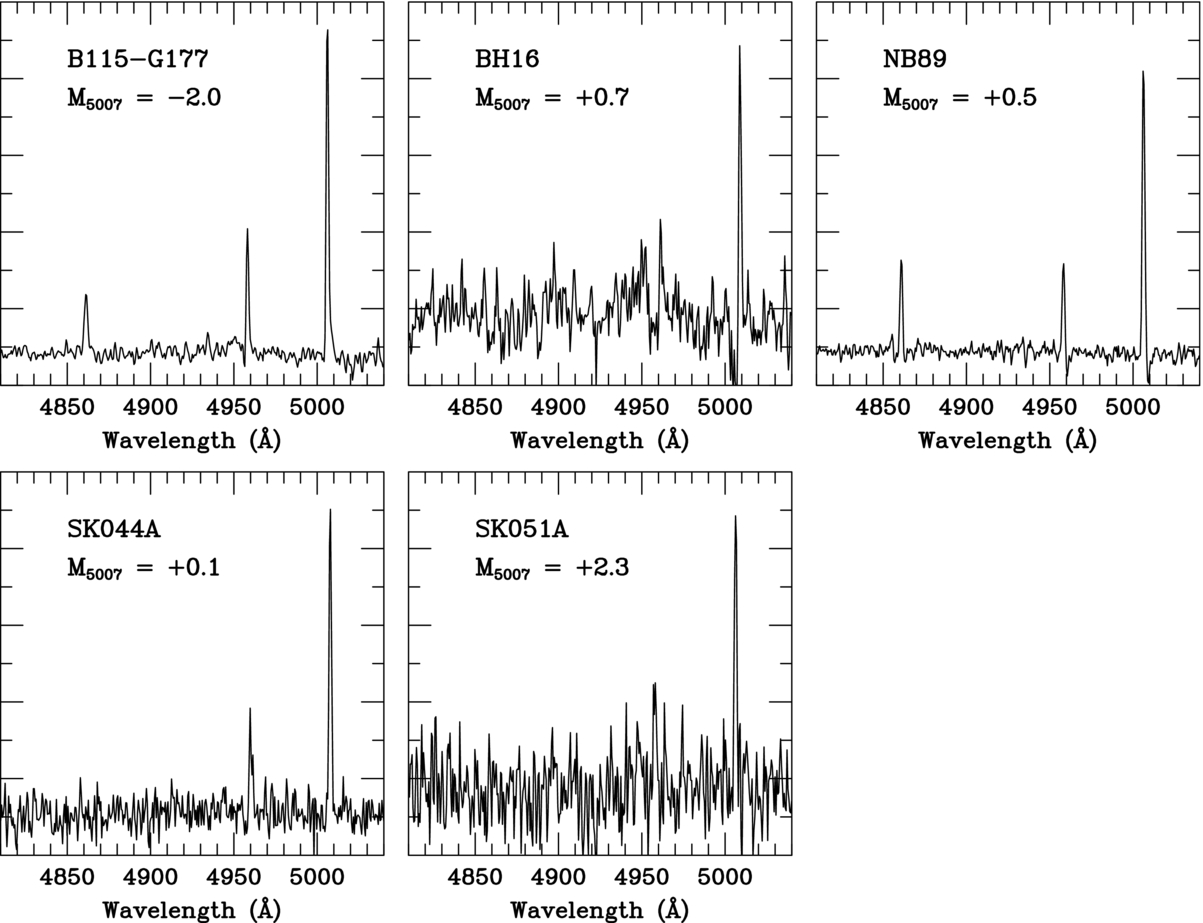

Caption: Figure 7.

The spectra of five systems with candidate planetary nebulae in the wavelength range between 4800 Å and 5100 Å. The top three panels show confirmed globular clusters; the bottom two panels show objects that may be globulars. To enhance the visibility of the emission lines, the spectrum of a template globular cluster has been subtracted from each object. The y-axis represents counts; to convert to relative flux, note that the system response at Hβ is roughly a factor of 1.46 less than that at [O iii] λ5007. For each candidate, the [O iii] line is at least twice the strength of Hβ.
