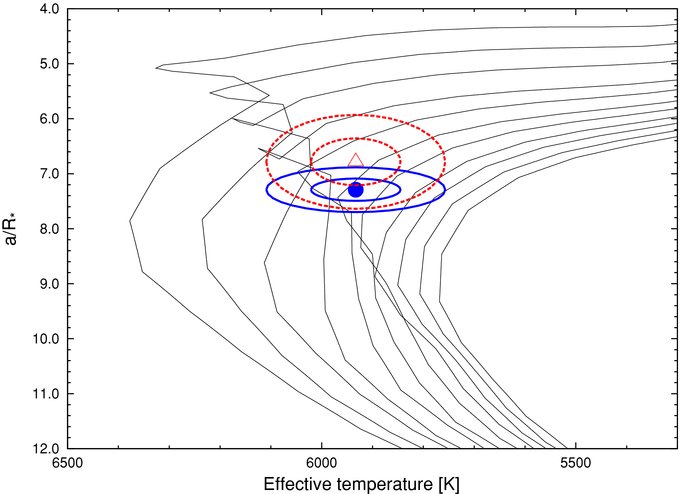

Caption: Figure 20.
Stellar isochrones from Yi et al. (2001) for metallicity [Fe/H] = +0.11 and ages 1.0, 1.4, 1.8, 2.2, 2.6, 3.0, 3.4, and 3.8 Gyr.
The final choice of
T
eff
and
a/
R
for the circular solution are marked by a filled circle, and is encircled by the 1σ and 2σ confidence ellipsoids (solid,
blue lines). The Corresponding values and confidence ellipsoids for the eccentric solution are shown with a triangle and dashed
(red) lines. Fits from method B.
