Laboratory Detection of HOCN and Tentative Identification in Sgr B2

Authors: S. Brünken, C. A. Gottlieb, M. C. McCarthy, and P. Thaddeus

BRÜNKEN et al. 2009 The Astrophysical Journal 697 880.

Provider: AAS Journals

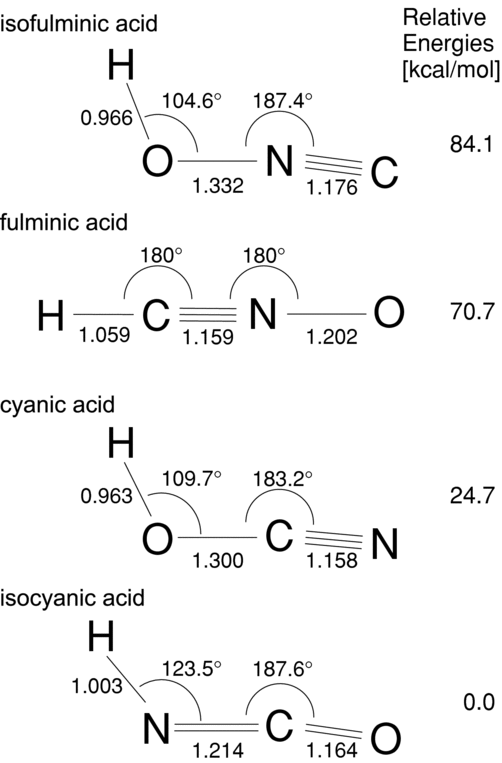

Caption: Figure 1.

Calculated equilibrium structures and relative energies of the CHNO isomers. Structures for HNCO, HOCN, and HCNO are from CCSD(T)/cc-pCV5Z calculations by ML; the structure of HONC (CCSD(T)/cc-pVQZ) and the relative energies are from SMAS.
