A Shrinking Compact Symmetric Object: J11584+2450?

  • Authors: S. E. Tremblay, G. B. Taylor, J. F. Helmboldt, C. D. Fassnacht, and T. J. Pearson

Tremblay et al. 2008 The Astrophysical Journal 684 153.

  • Provider: AAS Journals

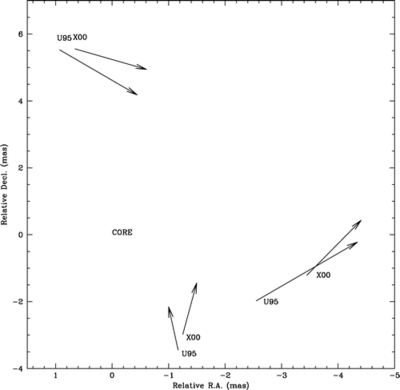

Caption: Fig. 5.

Relative velocity of model components. Velocity of each Gaussian model component is plotted (﹩1\ \mathrm{mas}\,=0.2c﹩) with the tail of each vector originating at the model component's position at its earliest observation (1995 for 15 GHz and 2000 for 8 GHz). The model fits are in agreement with the contour overlay plots in showing this source to be shrinking.
