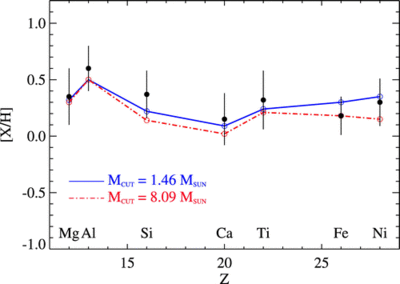

Caption: Fig. 12.
(a) Observed abundances (filled circles with error bars) compared with the expected abundances in the secondary star after having captured 5% of the matter ejected within the solid angle subtended by the secondary from a metal‐poor (Z = 0.02) 40 M⊙ spherically symmetric supernova explosion (MHe = 15.1 M⊙) with EK = 1051 ergs for two different mass cuts, Mcut = 1.46 M⊙ (solid line with open circles) and Mcut = 8.09 M⊙ (dash‐dotted line with open circles). The initial abundances of the secondary star were adopted for the average abundances of thin‐disk stars with [Fe/H] = 0.0 ± 0.2. (b) Same as (a), but for a spherically symmetric hypernova explosion (EK = 30 × 1051 ergs) for mass cuts of Mcut = 1.74 M⊙ (solid line with open circles) and Mcut = 8.09 M⊙ (dash‐dotted line with open circles).
