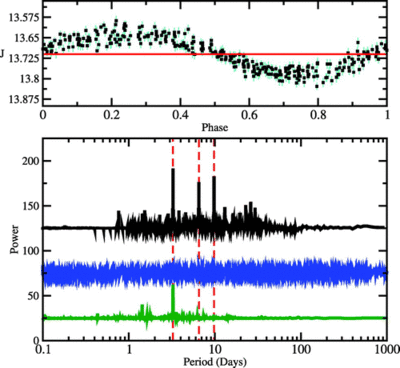

Caption: Fig. 13.
Top: J‐band Cal‐PSWDB data for 2MASS J15001192−0103090 folded to a period of 3.262 days. Data are shown in black, with 1 σ error bars in teal. Each data point corresponds to the unweighted average of one group of six scans (﹩m_{n,t_{6}}﹩). The mean apparent magnitude is shown with a red horizontal line. Bottom: Periodograms for 2MASS J15001192−0103090, calculated from J‐band Cal‐PSWDB data. Before applying a relative offset for clarity, all periodograms have been shifted to a mean of 0 and normalized to a standard deviation of 1. Black: Our algorithm ﹩( 1/ \chi ^{2}_{25}) ﹩. Blue: Box least squares. Green: Lomb‐Scargle. Periods are on the horizontal axis in days, and the corresponding periodogram power is on the vertical axis. Overlaid are dashed vertical red lines at 3.262, 6.524, and 9.786 days: the period, twice the period, and three times the period discovered for this periodic variable. See § 3.4.3 for discussion.
