Fig. 8 from The Chemistry of Multiply Deuterated Molecules in Protoplanetary Disks. I. The Outer Disk

Image Details

View Article Bookmark & Share

Choose export citation format:

Export Citation

Hi-Resolution Export to PDF

The Chemistry of Multiply Deuterated Molecules in Protoplanetary Disks. I. The Outer Disk

Authors: K. Willacy

Willacy 2007 The Astrophysical Journal 660 441.

Provider: AAS Journals

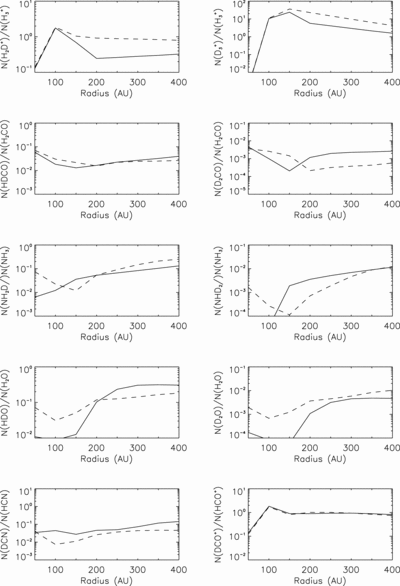

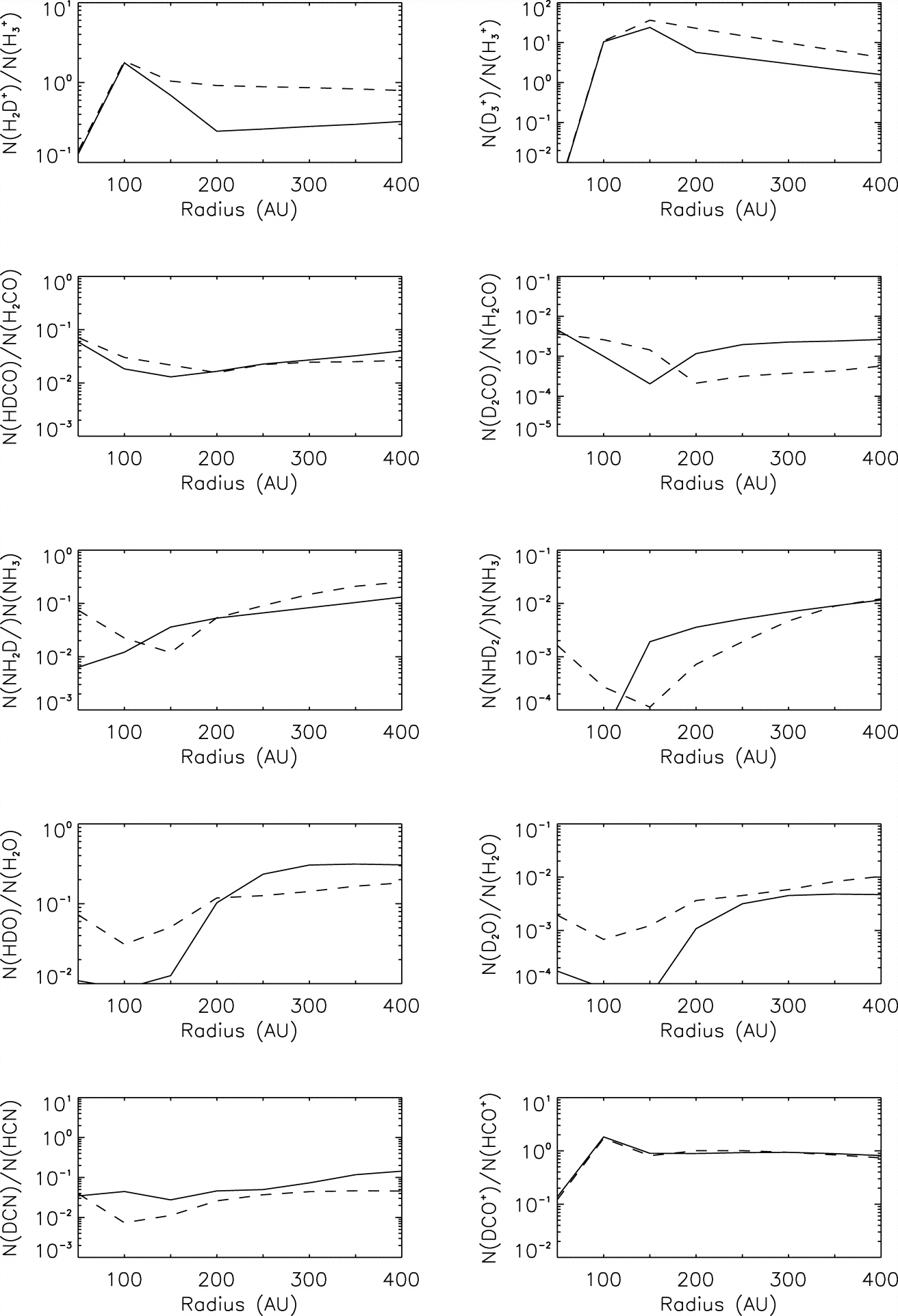

Caption: Fig. 8.

The D/H ratios calculated from the ratio of the column density of the deuterated species to the column density of the nondeuterated species, as a function of R. Model B is shown in the solid line, and model C is the dashed line.
