Measurement of the Spin‐Orbit Alignment in the Exoplanetary System HD 189733

Authors: Joshua N. Winn, John Asher Johnson, Geoffrey W. Marcy, R. Paul Butler, Steven S. Vogt, Gregory W. Henry, Anna Roussanova, Matthew J. Holman, Keigo Enya, Norio Narita, Yasushi Suto, and Edwin L. Turner

Winn et al. 2006 The Astrophysical Journal Letters 653 L69.

Provider: AAS Journals

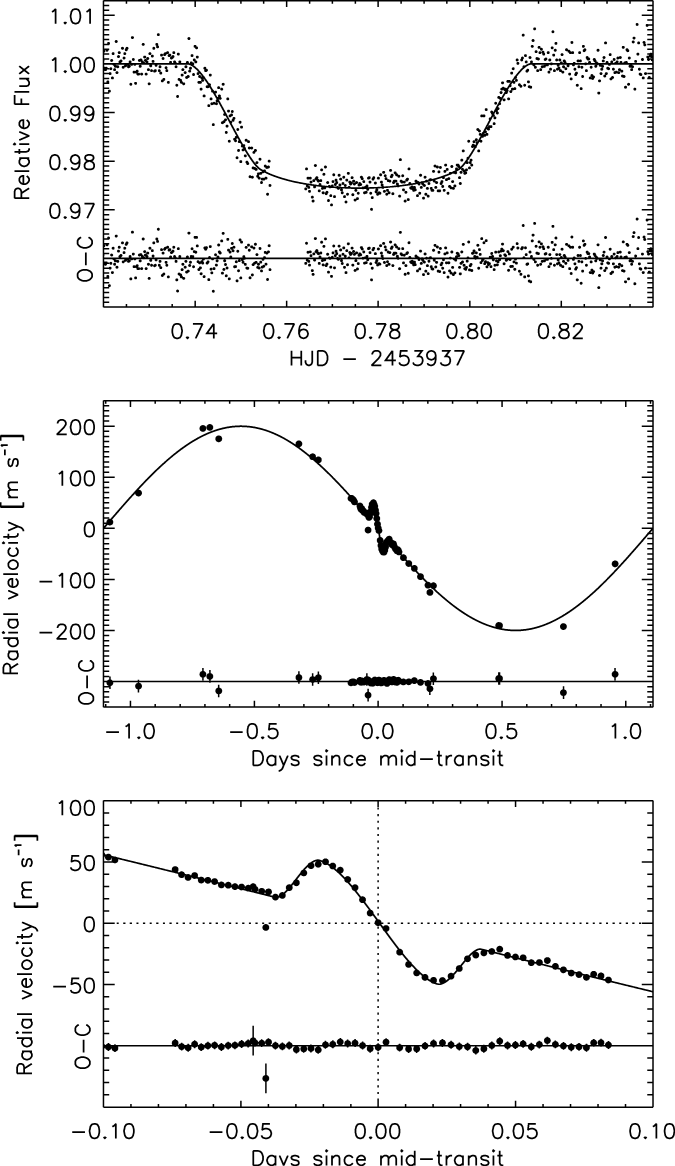

Caption: Fig. 1.

Photometry and spectroscopy of HD 189733. Top: z‐band photometry during a transit, along with the best‐fitting model (solid line). Middle: Radial velocities as a function of orbital phase (expressed in days), along with the model (solid line). Bottom: Close‐up near the midtransit time. In all cases, the residuals (observed−calculated) are plotted beneath the data.
