Models of the Large‐Scale Corona. I. Formation, Evolution, and Liftoff of Magnetic Flux Ropes

  • Authors: D. H. Mackay and A. A. van Ballegooijen

Mackay & van Ballegooijen 2006 The Astrophysical Journal 641 577.

  • Provider: AAS Journals

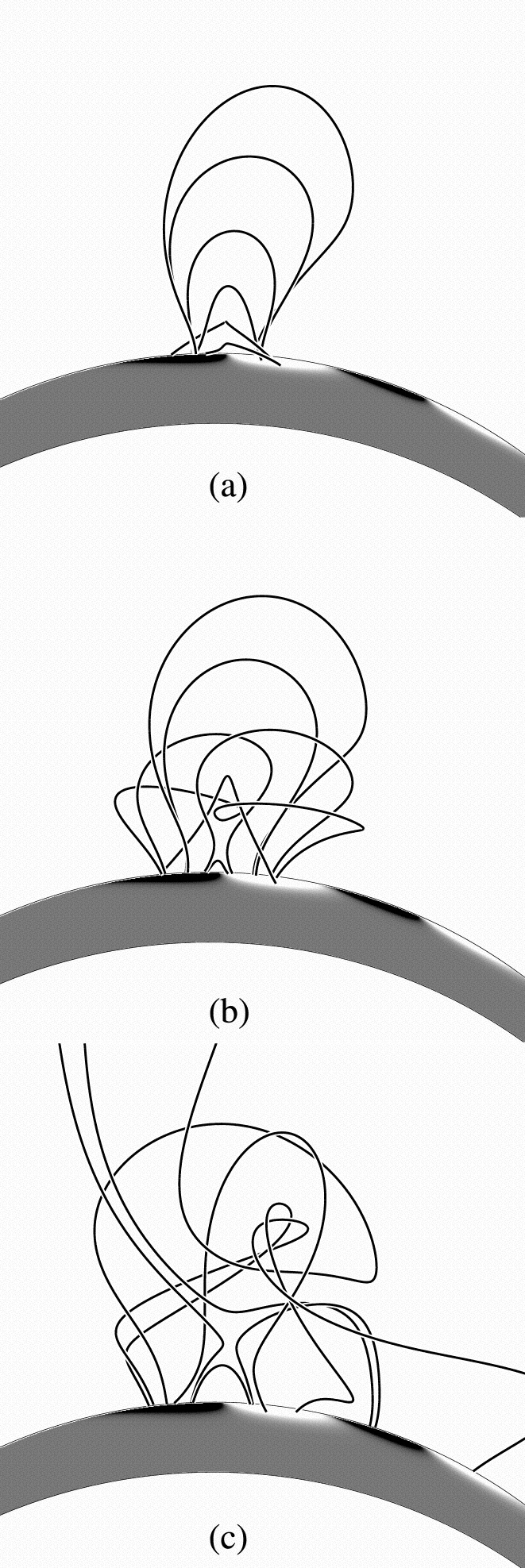

Caption: Fig. 7.

Example of the liftoff of the flux rope lying above the internal PIL of the trailing bipole on (a) day 17, (b) day 22, and (c) day 25. In (b, c) the formation of a quasi separatrix layer occurs below the flux rope in the form of an X‐line when viewed in two dimensions. This quasi separatrix layer is seen to rise as the flux rope rises.
