Double Catastrophe of Coronal Flux Rope in Quadrupolar Magnetic Field

Authors: Y. Z. Zhang, Y. Q. Hu, and J. X. Wang

Zhang, Hu, & Wang 2005 The Astrophysical Journal 626 1096.

Provider: AAS Journals

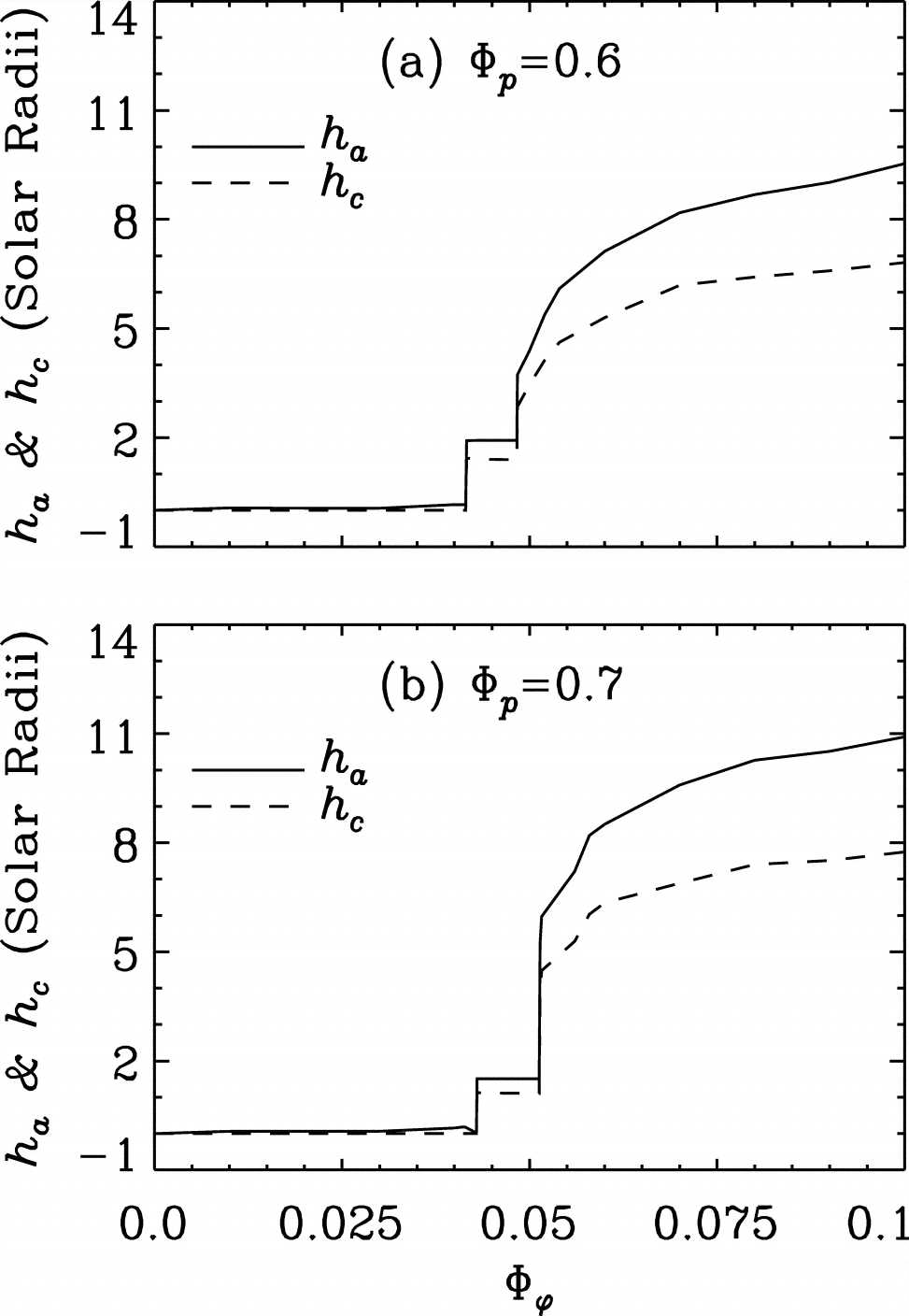

Caption: Fig. 1.

Geometric properties of the coronal magnetic flux rope in equilibrium vs. the axial magnetic flux ﹩\Phi _{\varphi }﹩ for (a) ﹩\Phi _{p}=0.6﹩ and (b) ﹩\Phi _{p}=0.7﹩.
