Distributions of Galaxy Spectral Types in the Sloan Digital Sky Survey

Authors: C. W. Yip, A. J. Connolly, A. S. Szalay, T. Budavári, M. SubbaRao, J. A. Frieman, R. C. Nichol, A. M. Hopkins, D. G. York, S. Okamura, J. Brinkmann, I. Csabai, A. R. Thakar, M. Fukugita, and Ž. Ivezić

Yip et al. 2004 The Astronomical Journal 128 585.

Provider: AAS Journals

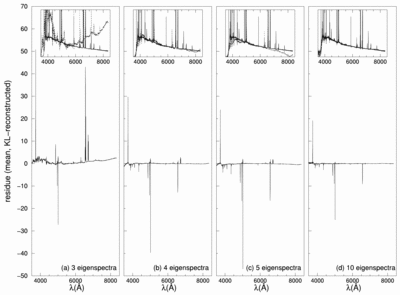

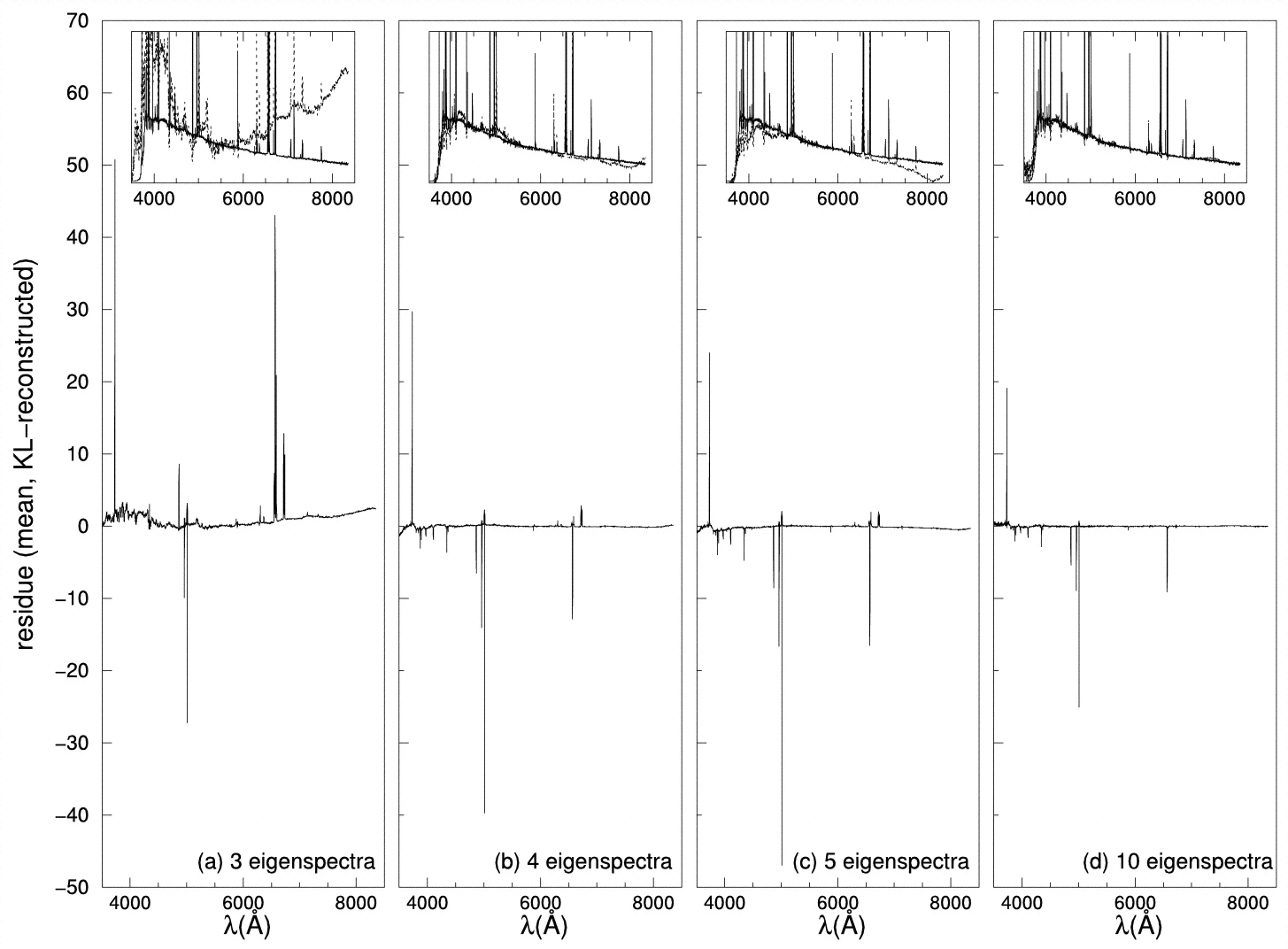

Caption: Fig. 14.

Residuals of the mean spectrum of extreme emission galaxies [classification angles in the range (−60, −40, 120, 135)] with the KL‐reconstructed spectrum using (a) 3, (b) 4, (c) 5, and (d) 10 eigenspectra. The insets are the enlarged regions of the continuum levels; in each case the solid line is the mean spectrum and the dotted line is the mean of the KL‐reconstructed spectra. The spectra are normalized at 5500 Å.
