Imaging the Disk around TW Hydrae with the Submillimeter Array

Authors: Chunhua Qi, Paul T. P. Ho, David J. Wilner, Shigehisa Takakuwa, Naomi Hirano, Nagayoshi Ohashi, Tyler L. Bourke, Qizhou Zhang, Geoffrey A. Blake, Michiel Hogerheijde, Masao Saito, Minho Choi, and Ji Yang

Qi et al. 2004 The Astrophysical Journal Letters 616 L11.

Provider: AAS Journals

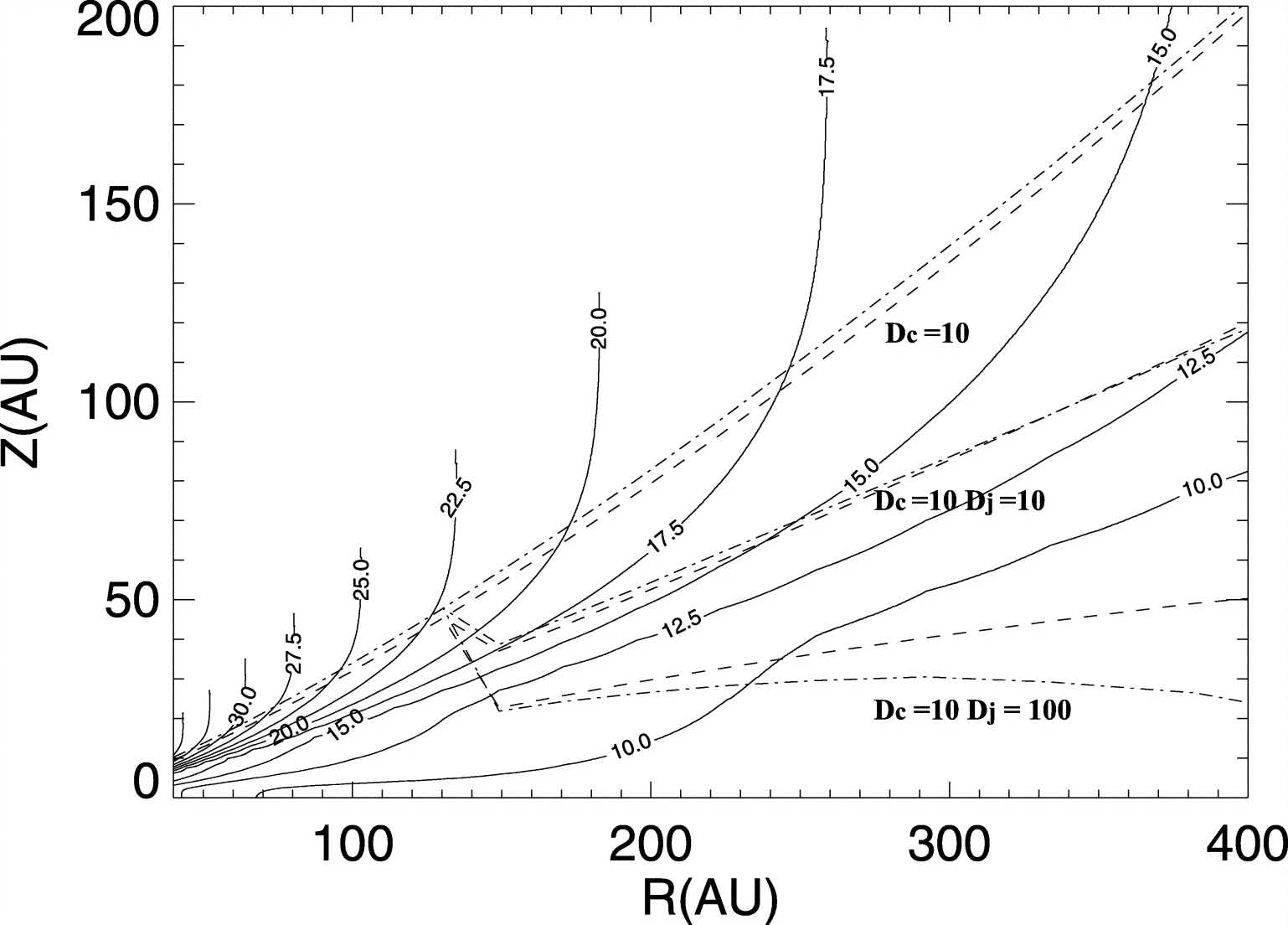

Caption: Fig. 3.

Gas kinetic temperature from the TW Hya model of Calvet et al. (2002; solid lines) and the ﹩\tau =1﹩ surfaces for the CO ﹩J=3{\mbox{--}} 2﹩ and ﹩J=2{\mbox{--}} 1﹩ lines for the three depletion scenarios described in the text (dashed and dot‐dashed lines).
