Emission Lines of [Cl II] in the Optical Spectra of Gaseous Nebulae

  • Authors: F. P. Keenan, L. H. Aller, K. M. Exter, S. Hyung, and D. L. Pollacco

Keenan et al. 2003 The Astrophysical Journal 584 385.

  • Provider: AAS Journals

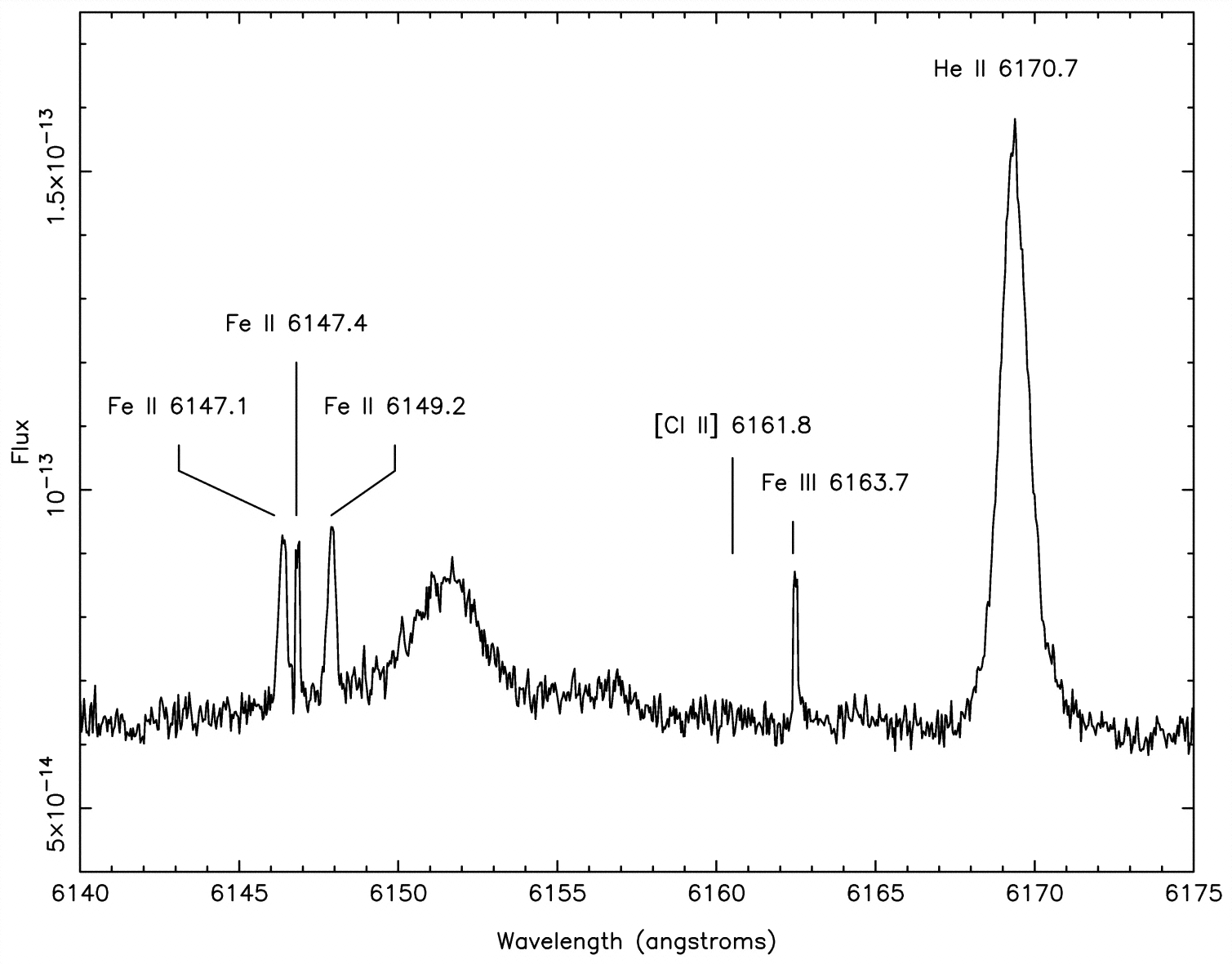

Caption: Fig. 6.

Portion of the UCLES spectrum of the symbiotic star RR Telescopii, where the flux is in units of ergs cm−2 s−1 Å−1, with the expected position of the [Cl II] 6161.8 Å emission feature (line). Also labeled in the figure are the Fe II 6147.1 Å, Fe II 6147.4 Å, Fe II 6149.2 Å, Fe III 6163.7 Å, and He II 6170.7 Å transitions, while there is an unidentified feature at 6150.1 Å. Radial velocity and interstellar extinction corrections have not been applied to this spectral scan.
