The Spectral Components of SS 433

  • Authors: D. R. Gies, M. V. McSwain, R. L. Riddle, Z. Wang, P. J. Wiita, and D. W. Wingert

Gies et al. 2002 The Astrophysical Journal 566 1069.

  • Provider: AAS Journals

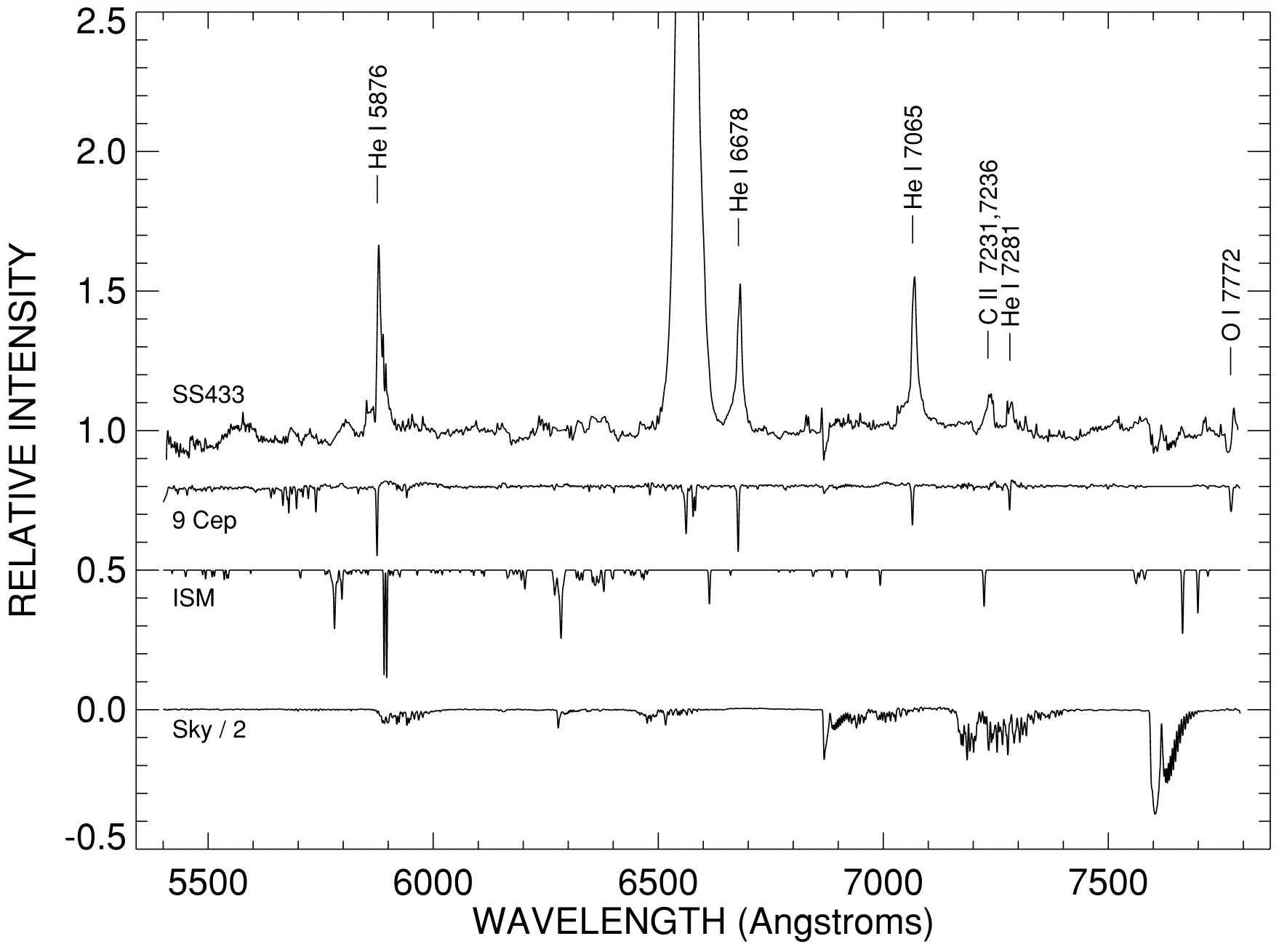

Caption: Fig. 10.

Average spectrum of SS 433 (top) after removal of the Hα jet components and division of the interstellar spectrum (third from top; offset in intensity by −0.5 for clarity). Also shown are the absorption spectrum from Earth’s atmosphere (bottom; reduced by a factor of 2 in intensity and offset by −1.0) and the spectrum of 9 Cep (B2 Ib; second from top; offset in intensity by −0.2).
