Abundance Patterns in the Draco, Sextans, and Ursa Minor Dwarf Spheroidal Galaxies

  • Authors: Matthew D. Shetrone, Patrick Côté, and W. L. W. Sargent

Shetrone, Côté, & Sargent 2001 The Astrophysical Journal 548 592.

  • Provider: AAS Journals

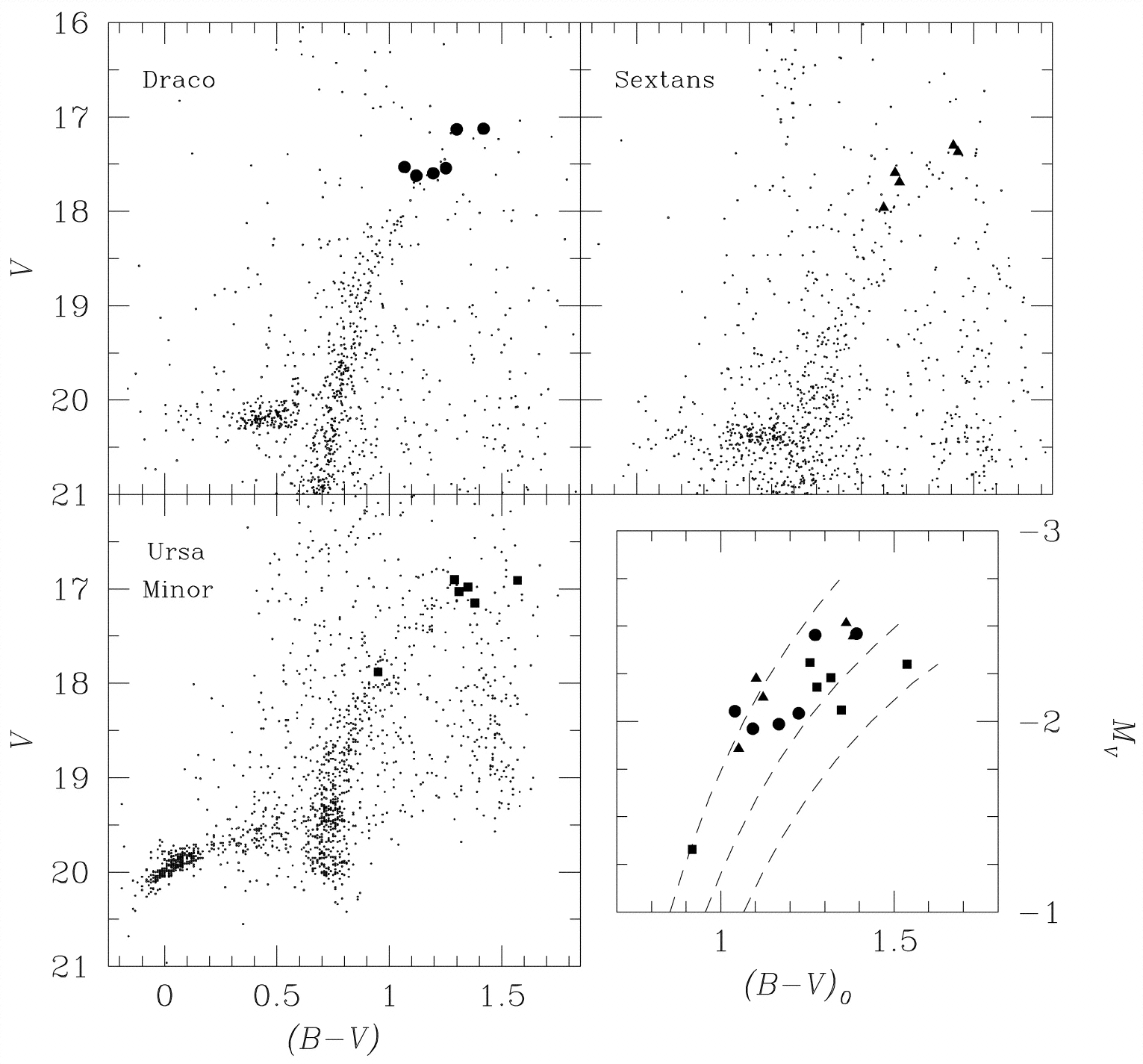

Caption: Fig. 1.

BV color‐magnitude diagrams for the three dSph galaxies in our program, Draco, Sextans, and Ursa Minor. The red giant branch stars for which we have HIRES spectra are indicated for Draco (circles), Sextans (triangles), and Ursa Minor (squares). The four Draco stars observed by Shetrone et al. (1998) are also shown in the first panel. Photometric data for Draco, Sextans, and Ursa Minor are from Stetson (2000), Suntzeff et al. (1993), and Cudworth et al. (2000), respectively. The lower right panel shows the location of our program stars in the MV–(BV)0 plane. Dashed lines show 13 Gyr isochrones from Bergbusch & Vandenberg (1992) having metallicities of ﹩[ \mathrm{Fe}\,/ \mathrm{H}\,] =-2.26﹩, −1.66, and −1.26 dex. The symbols are the same as in the proceeding panels.
