Testing Astrophysical Radiation Hydrodynamics Codes with Hypervelocity Jet Experiments on the Nova Laser

Authors: James M. Stone, Neal Turner, Kent Estabrook, Bruce Remington, David Farley, S. Gail Glendinning, and Siegfried Glenzer

Stone et al. 2000 The Astrophysical Journal Supplement Series 127 497.

Provider: AAS Journals

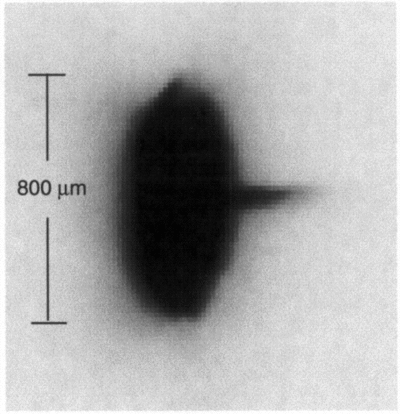

Caption: Fig. 6.

Example of a static (i.e., time‐integrated) pinhole image in emission from a gold jet launched from the experimental configuration shown in Fig. 4a. The pinhole camera used ﹩10\,\mu \mathrm{m}\,﹩ pinholes at 4 times magnification, was filtered with 1 mm of Be, recorded directly onto DEF X‐ray file, and viewed the jet from an angle of 68° with respect to the direction of propagation.
