Event Rate and Einstein Time Evaluation in Pixel Microlensing

  • Authors: Edward A. Baltz and Joseph Silk

Baltz & Silk 2000 The Astrophysical Journal 530 578.

  • Provider: AAS Journals

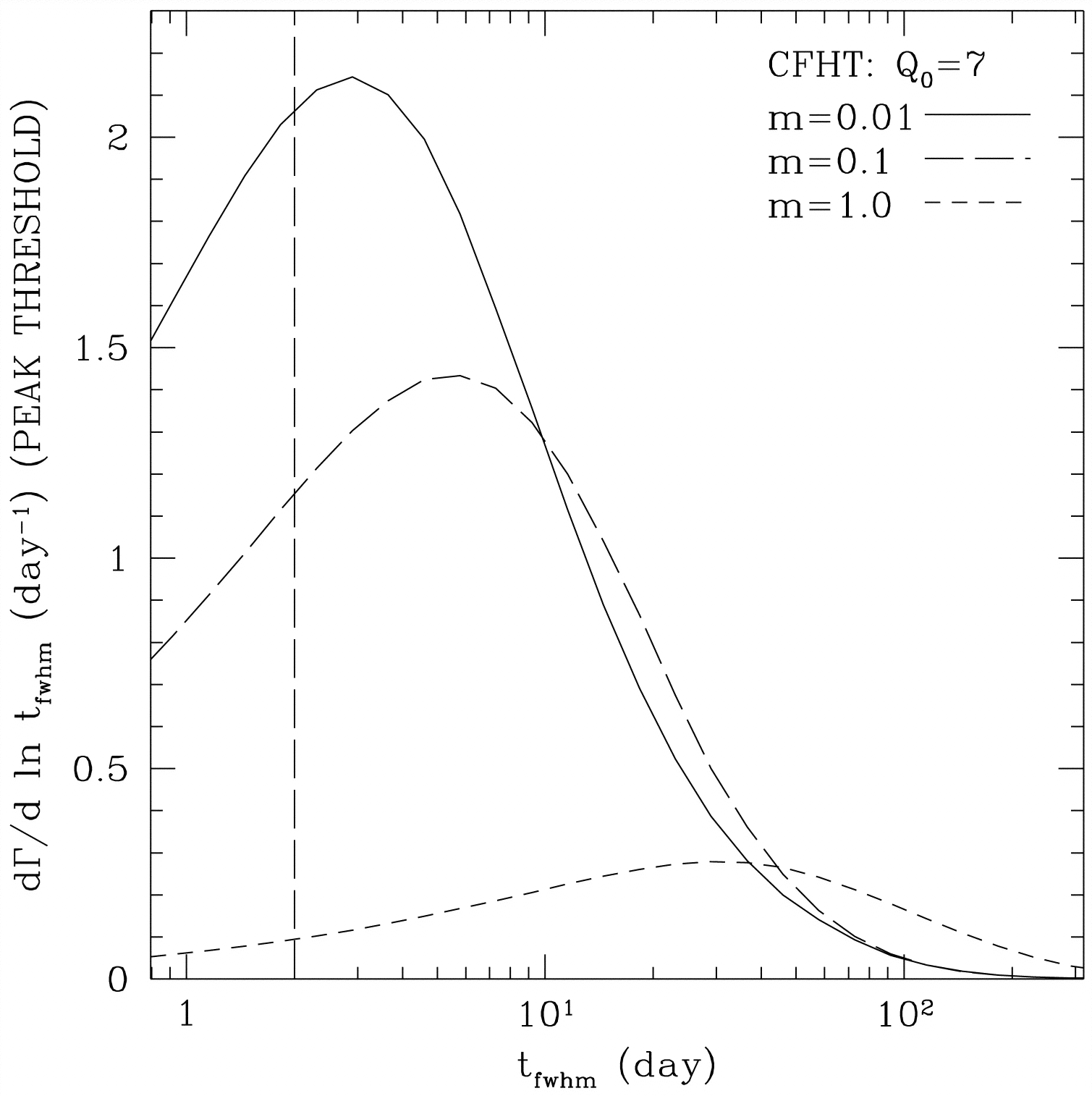

Caption: Fig. 7.

Pixel lensing rates for M31 using the CFHT ﹩12\mathrm{k}\,\times 8\mathrm{k}\,﹩ CCD. Top left: Peak threshold trigger with ﹩Q_{0}=7﹩. Top right: Improved peak threshold trigger, also with ﹩Q_{0}=7﹩. Bottom: Improved peak threshold trigger with ﹩Q_{0}=42﹩, 6 times larger than the other cases. The spacing of observations is 1 day.
