A New High‐Resolution CO Map of the Inner 2﹩\farcm﹩5 of M51. I. Streaming Motions and Spiral Structure

Authors: S. Aalto, S. Hüttemeister, N. Z. Scoville, and P. Thaddeus

Aalto et al. 1999 The Astrophysical Journal 522 165.

Provider: AAS Journals

Caption: Fig. 5.

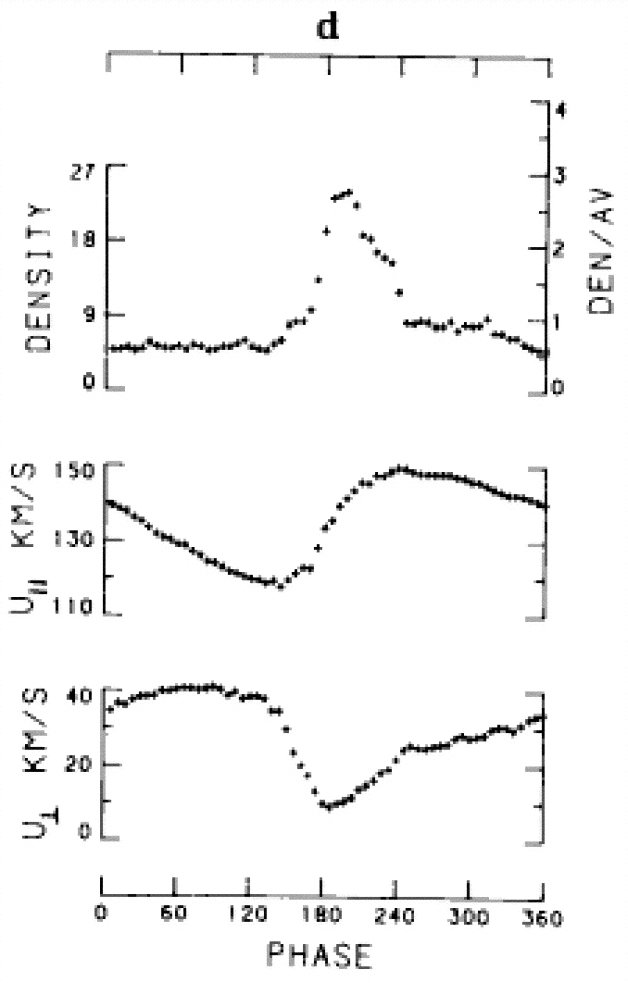

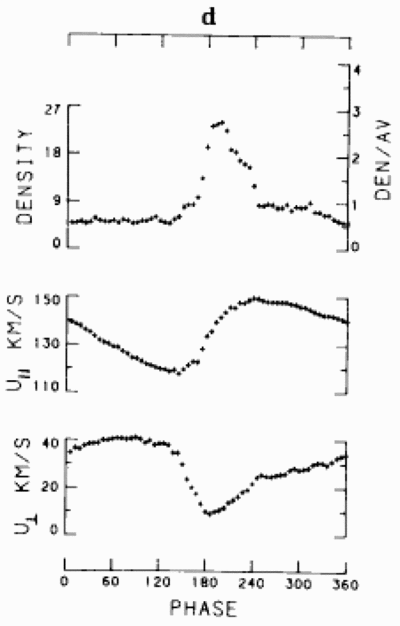

Cloud density (top) and velocity components (middle, tangential; bottom, radial) plotted vs. spiral phase, from RS87 dissipative simulations, case M. For a tightly wound spiral, a cut through the spiral phase is roughly equivalent to a cut in radius. This particular figure is at a time step 1170 Myr.
