Infrared Response of H₂ to X‐Rays in Dense Clouds

Authors: S. Tiné, S. Lepp, R. Gredel, and A. Dalgarno

Tiné et al. 1997 The Astrophysical Journal 481 282.

Provider: AAS Journals

Caption: Fig. 3.

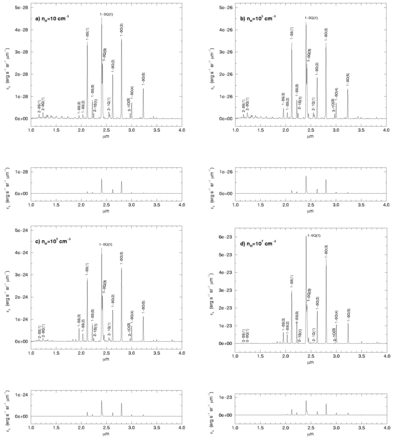

H₂ emission spectra produced at ζ/n_H = 10⁻¹⁷ cm³ s⁻¹ and T = 500 K with electron pumping either included (top) or excluded (bottom) for a density of (a) 10 cm⁻³, (b) 10³ cm⁻³, (c) 10⁵ cm⁻³, and (d) 10⁷ cm⁻³.
