The Nature and Evolution of Classical Double Radio Sources from Complete Samples

  • Authors: Katherine M. Blundell, Steve Rawlings, and Chris J. Willott

Blundell, Rawlings, & Willott 1999 The Astronomical Journal 117 677.

  • Provider: AAS Journals

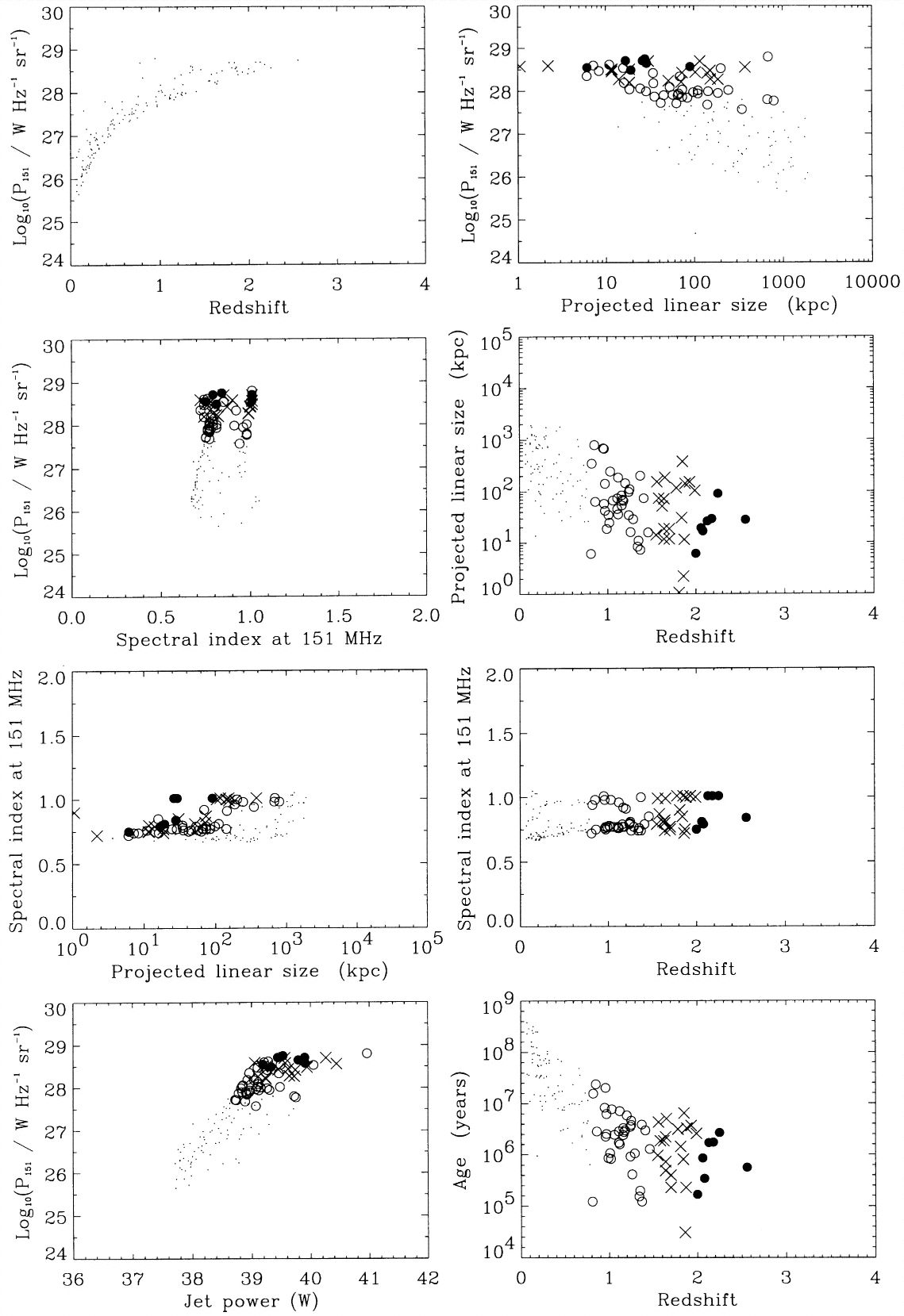

Caption: Fig. 17.

Simulated 3C data, assuming ΩM = 1 and ΩΛ = 0, for the six planes in [PDzα] parameter space and additionally a plot of the jet power Q0 vs. rest‐frame luminosity at 151 MHz and a plot of the age of each source at the point we observe it against redshift. Solid circles indicate objects at z ≥ 2, crosses indicate objects with 2 > z ≥ 1.5, open circles indicate 1.5 > z ≥ 0.8, and dots indicate sources with z < 0.8.
